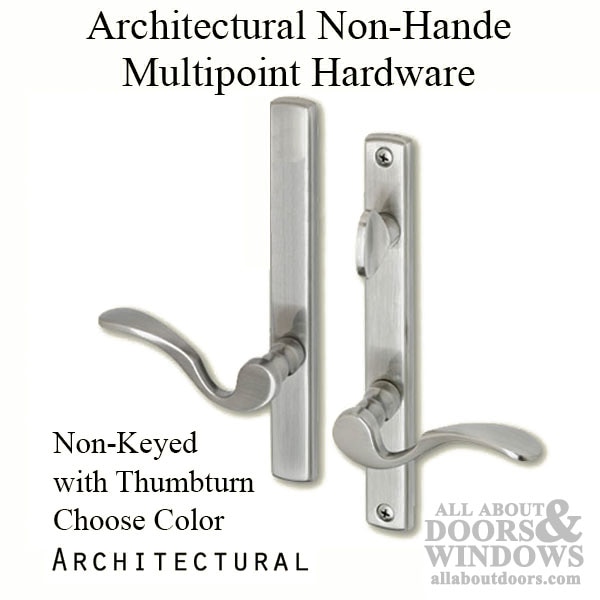

Multipoint Door Handles for Swing Door, Inactive - Non-keyed with Thumbturn
This is a multipoint door handle set for hinged swing doors.
This handle set is not handed and will fit on left or right hand doors.
It is used primarily on interior doors where restricted access with a key is NOT desired, however it can be used on exterior doors.
There is a Thumb-turn on this handle set, allowing for semi restricted access.
The Thumb-turn will lock the handle levers in place.
The handle levers, when unlocked, will operate the multipoint lock.
Works with G-U, Ferco, Marvin, KML, BiltBest, Hurd and others.

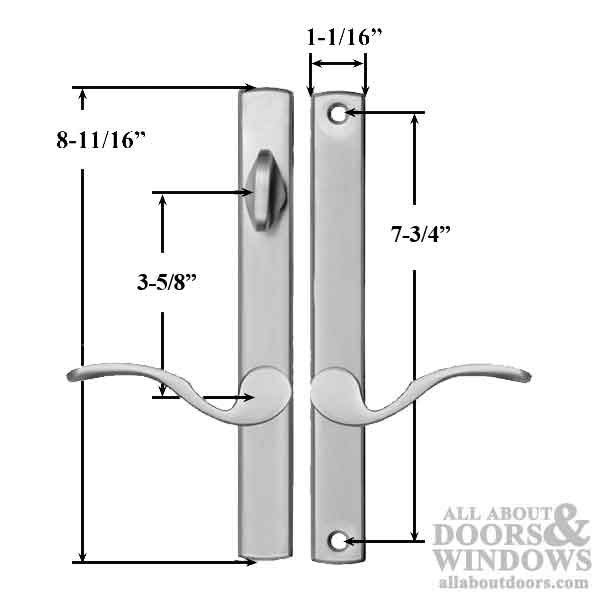

The handle PZ is 3-5/8 inches (92 mm), center of handle to center of thumb-turn.
There is no lock or cylinder with this handle set.
This handle set fits 1-3/4 inch (45 mm) thick doors.
The thumb-turn rotates 90 degrees.
The screw holes on the escutcheon plate are 7-3/4 inch center to center.
The escutcheon plates themselves are 1-1/16 x 8-11/16 inch
Constructed out of solid brass, this handle set is available in the following Functions and Finishes.
Functions:
This handle is an inactive, non-keyed handleset with a thumbturn.
This handleset is available in two other functions:

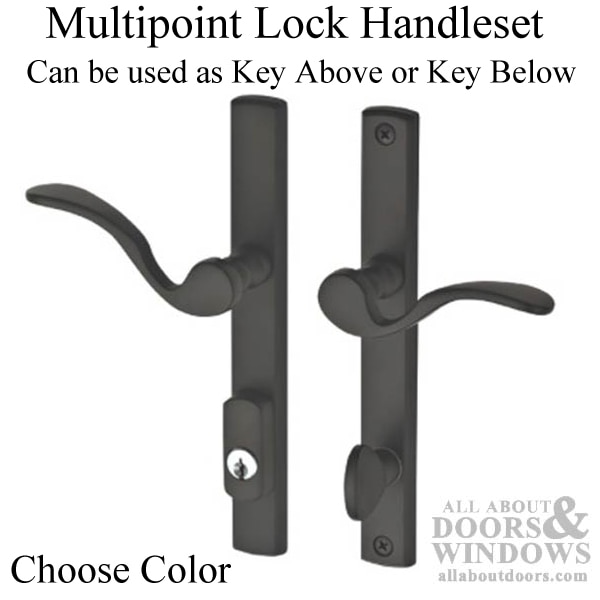

Active: Keyed with thumb-turn - 404101

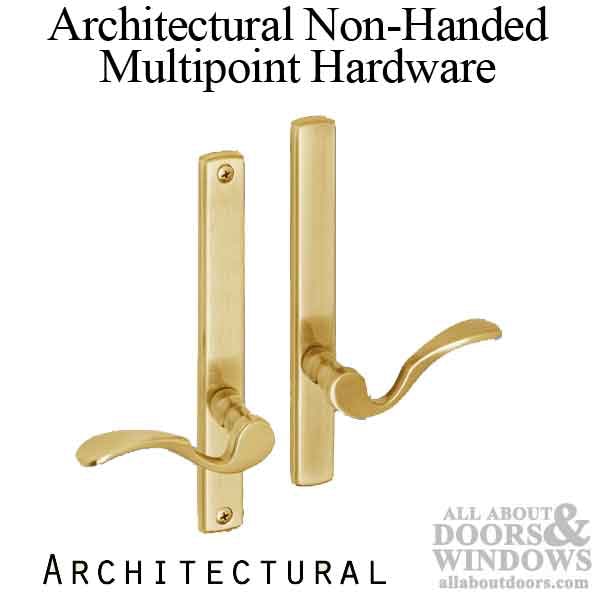

Dummy: No Key, No Thumb, Rigid levers - 404103

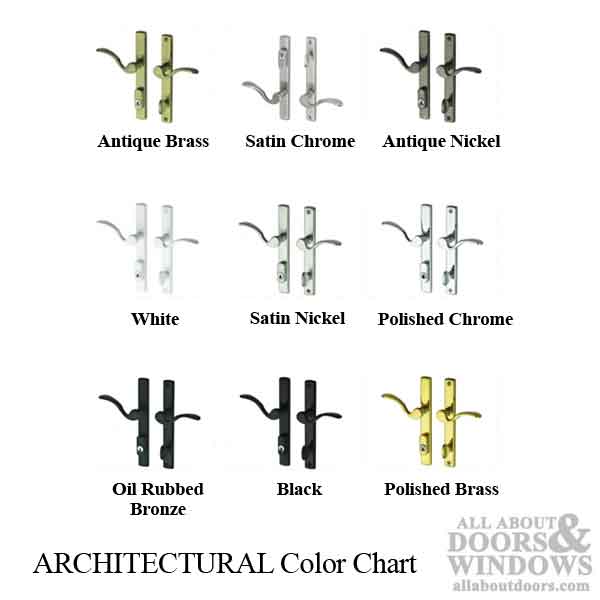

Available Finishes:
Antique Brass
Antique Nickel
Black
Brushed/Satin Chrome
Polished Brass
Polished Chrome
Brushed/Satin Nickel
Oil Rubbed Bronze
White
Note: If you are replacing hardware, keep in mind that these escutcheon plates may be smaller than the originals and may not cover impressions or lines on door panels made by the old hardware.
This hardware is best suited for new construction or when doors have been refinished.
Priced and sold as a package.
