Mortise Lock and Trim Plate with 45 Degree Slot for Sliding Glass Door - Yellow Dichromate

Part Number: 15331-YDI
Price: $44.29
Single point mortise lock and trim plate with 45 degree slot for sliding glass door.

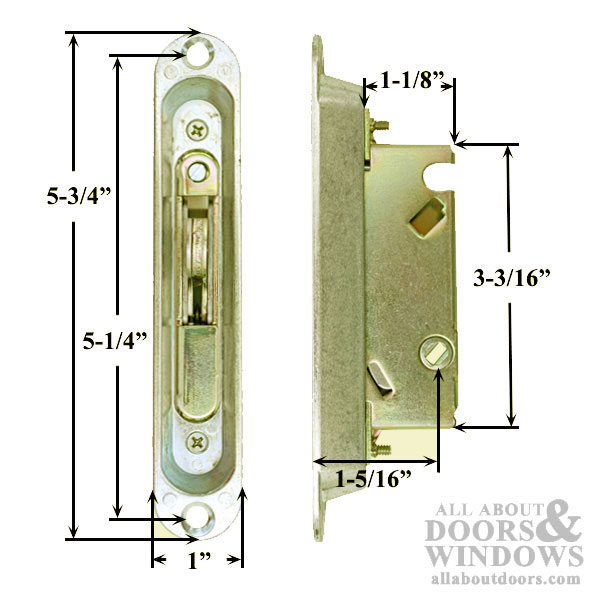

Face Plate Width: 1 Inch
Face Plate Length: 5-3/4 Inch
Hole Center: 5-1/4 Inch
Lock Length: 3-3/16 Inch
Lock Width: 1-1/8 Inch
Backset: 1-5/16 Inch
Keyway: 45 Degree Slot
Face Plate Depth: 1/2"
Finishes: 3 Colors

Color:
Yellow Dichromate

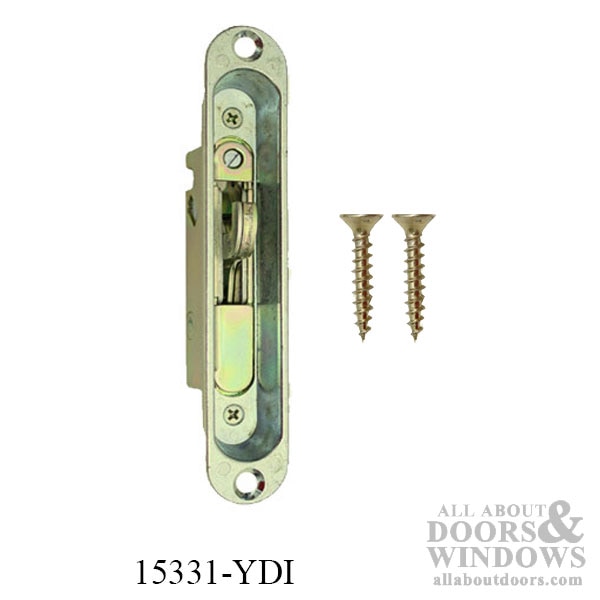

Contents: One mortise lock, one face plate, two installation screws.

Priced and sold each.
