This fits doors that have the mortise lock in the center. If you door has the lock offset to inside or outside the key cylinder will not fit correctly.

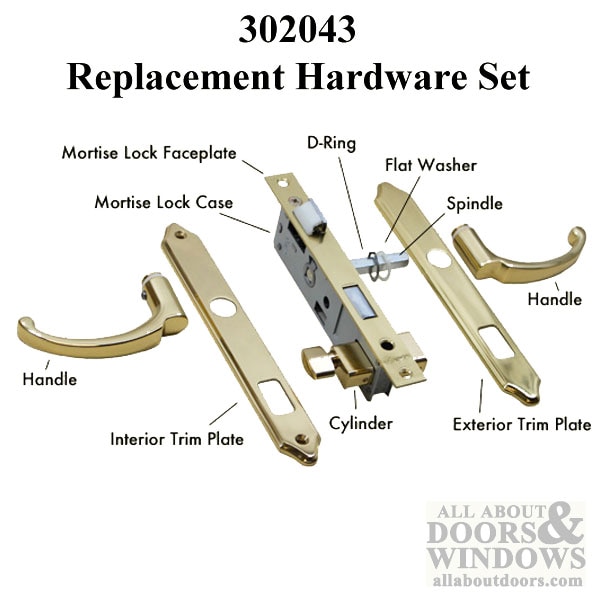

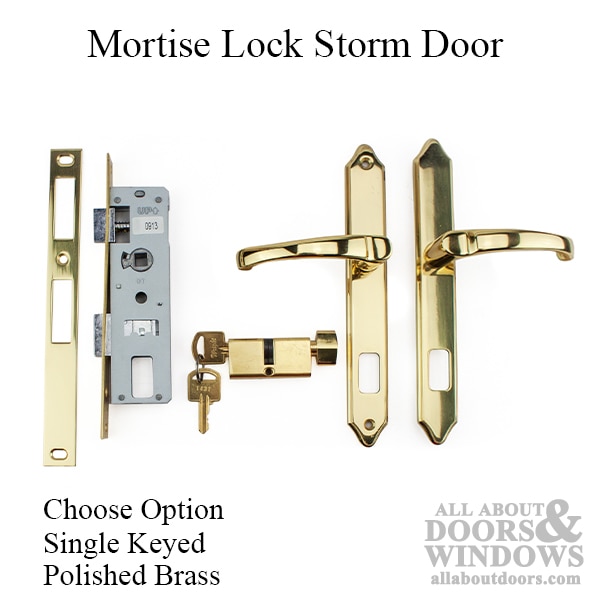

Single Keyed Storm Door Hardware and Mortise Lock
The hardware and mortise lock faceplate in 4 finishes.

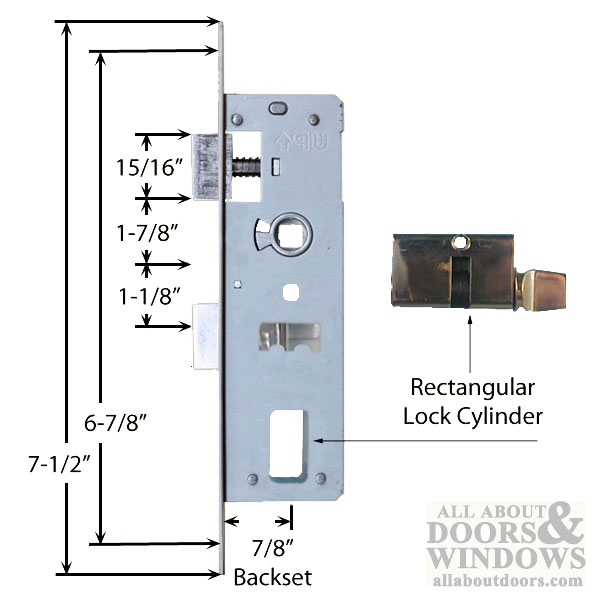

Vermont Series Mortise Lock
Cutout and screw holes may not be the same as other Wright Hardware.
Solid Trim plates with Curved Handles.

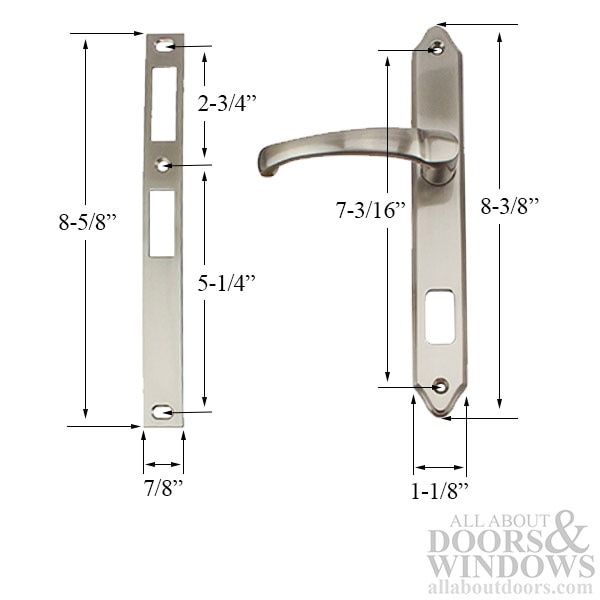

Exterior Faceplate screw holes 7-1/8 inches apart.
Screws on inside bolt to outside plate, screws visible on inside only.
Latch Face Plate Measures 13/16 x 7-1/2.Available Colors:

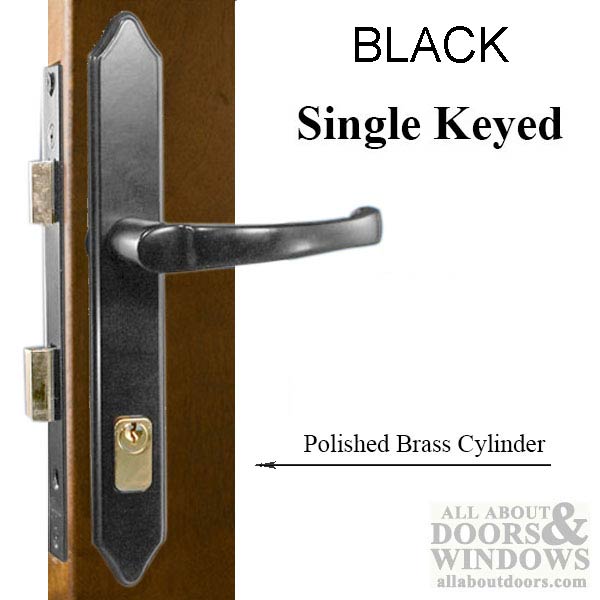

Black ( has a brass keyed cylinder )
Venetian BronzeFits Door Thicknesses:
1 Inch, 1-1/4 Inch, 1-1/2 Inch (3 spindle sizes included).
Additional key blanks available as part 302051
Note: If you are using this lock to replace another brand, please read this mortise lock conversion
