Mortise Lock, Interior lock case assembly w/ keys

Part Number: 42983
Price: $16.07
Interior Door Mortise case lock with brass plated faceplate
Replaces Mortise bit (Skeleton Key) type lock.
Spindle hole will accommodate 1/4 inch square shaft.
Usually set up for Left hand doors
Handing may be reversed.

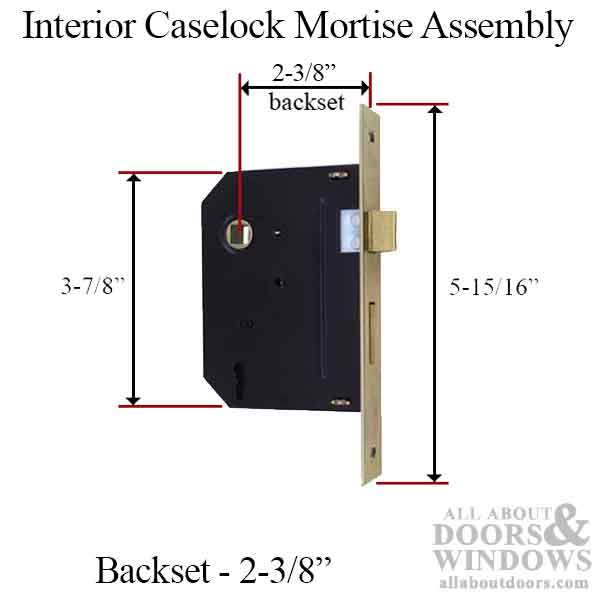

Backset: 2-3/8 inch
Faceplate: 7/8 x 5-15/16 inch
Faceplate Screw Hole Center: 5-1/16 inch
Faceplate Finish: Satin Brass
Keyway: Generic Skeleton Key
Lock body thickness: 1/2 inch
Lock Body Height: 3-7/8 inch

ilco Related items:
42981 - Brass & Glass knobs
42982 - Escutcheon Plates only
42983 - Mortise lock only
Priced and sold each.
