Monaco Active Keyed Multipoint Lock Trim Handleset, Classic Wave Lever
Monaco Wave style lever for Triple Latch multipoint lock hardware
Premium multipoint handleset for use with triple latch, deadlocking tongue and shootbolt bolt multipoint locks
Application: Residential exterior door with Rockwell multipoint lock.
Function: Active Keyed door

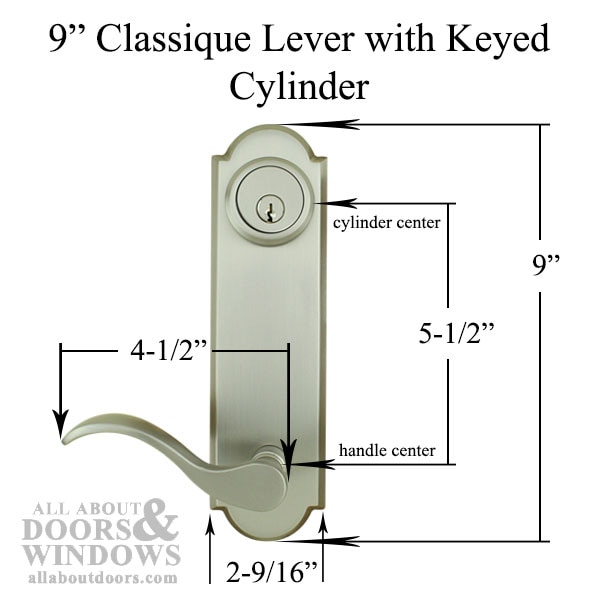

Plate Width: 2-1/2 inches
Plate Length: 9 inches
Finish: Brushed Satin Nickel or Antique Black ( similar to Oil Rubbed Bronze)
Plate Style: Traditional arch top escutcheon plates
Lever Style: curved lever, classic wave design
Material: solid forged brass
Bore Application: 5-1/2 inch, center of holes for Passage and Deadbolt
Cross Bore: 2-1/8" Standard
Door Thickness: 1-3/4 inch
Lock Handle Hub to Cylinder: 5-1/4 inch
Spindle Length: 4-5/16 inch
Keyway: Schlage SC1, 5 pin
Keys: 2 with Large Bow head
Strike Plates ordered Separately ( 1-3/4 x 3-1/2" length) Need 4 on 8' door
Note:
Key cylinder hole on deadbolt is not in the center of the rosettes, it is offset from the center of the rosette by a small distance. This is the reason they measure 5-1/4 inch but they are made to fit a 5-1/2 Center to Center double bore on the door.
