Metal Tilt Latch For Double Hung Windows Bottom Sash Lock Lower Window Sash Lock Choose Color Handing

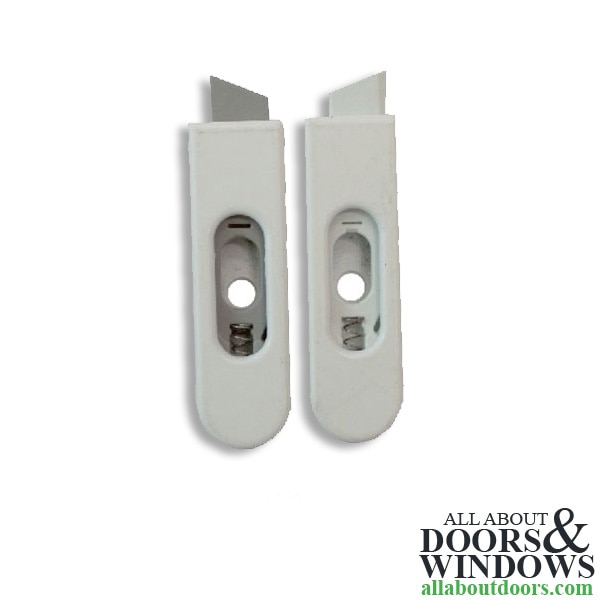

Used in wood double hung windows. Metal housing with plastic tip. Priced and sold each.

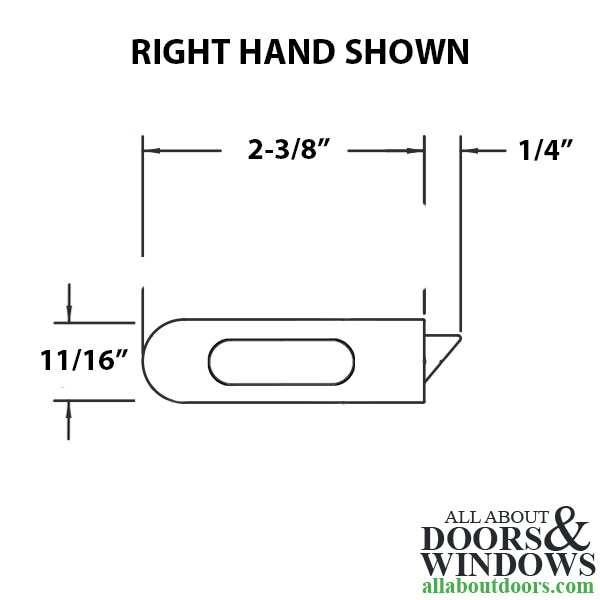

Housing Length: 2-3/8"
Housing Width: 11/16"
Tip projection: 1/4", non-bevelled

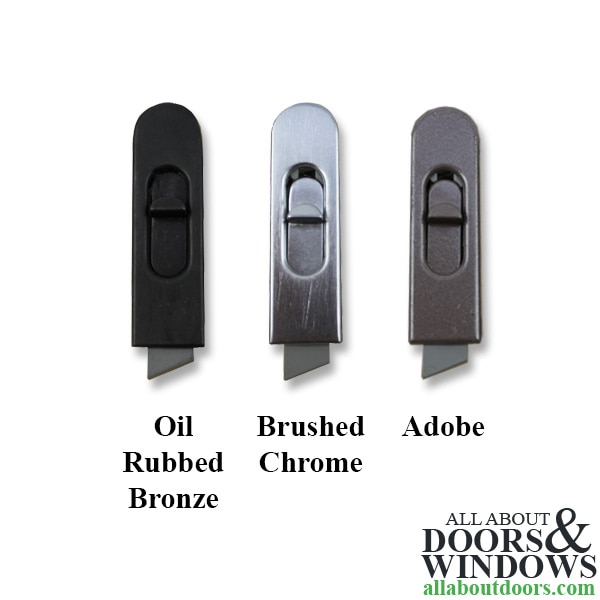

Available Colors/Finishes:
Oil-Rubbed Bronze
Brushed Chrome
Adobe
NOTE:
This latch is held in with a screw located under the thumb button.
To remove button, slide back and insert a small screw driver under the edge, and lift up.
Then, remove Phillips head screw and slide latch out.
