Windsor Metal & Plastic Tilt Latch, Double Hung, Left Hand

Part Number: 503207
Price:$8.95 to $9.95

Metal & Plastic Tilt Latch, Double Hung, Left Hand

Combination vinyl and metal construction.

Held in place with screw when latch is retracted.


Used by Several companies including Windsor on their Pinnacle Series window


Application: Double hung windows, Top or Bottom Sash

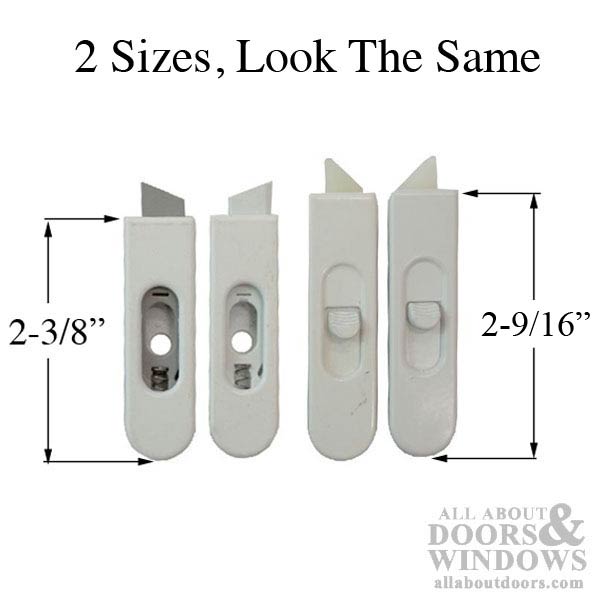

Housing Length: 2-9/16 inch

Housing Width: 11/16 inch

Housing Thickness 3/8 inch

Latch projection 5/16 inch.

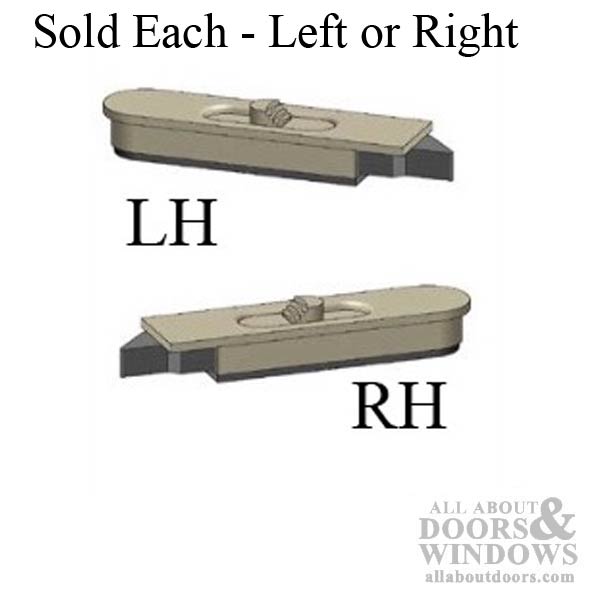

Handed: Yes, Left and Right as shown

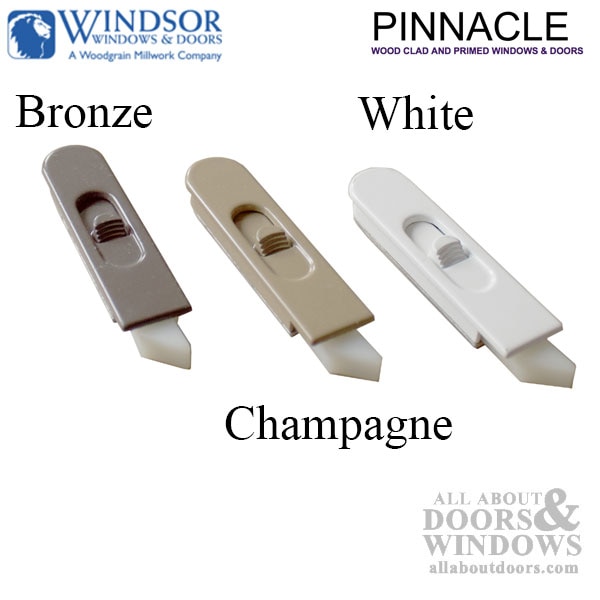

Colors: White , Bronze and Champagne standard, others colors available special order

Material: Metal & Plastic

Markings: 4262 on Reverse

Priced and sold Each

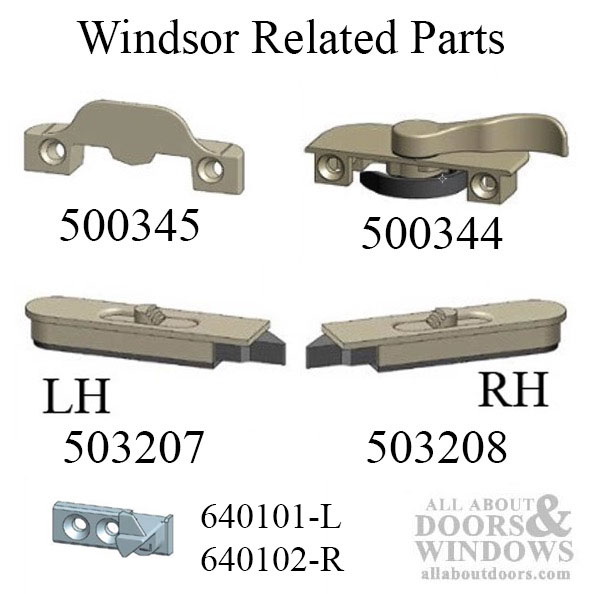

Related Windsor Parts:

500344 - Sash Lock

500345 - Keeper

503087 - Tilt Latch, Left

503208 - Tilt Latch, Right

640101 - Tilt Pin, Bottom Left

640102 - Tilt Pin, Bottom Right


Windsor; Pinnacle  Double Hung Tilt Latch


LH - 2382720 - White

RH - 2382721  - White


LH - 2382722 - Champagne

RH - 2382723 - Champagne


LH - 2382724 - Bronze

RH - 2382725 - Bronze
