Marvin Screen Roller with Gear - Discontinued
This item is discontinued (see replacement options below)

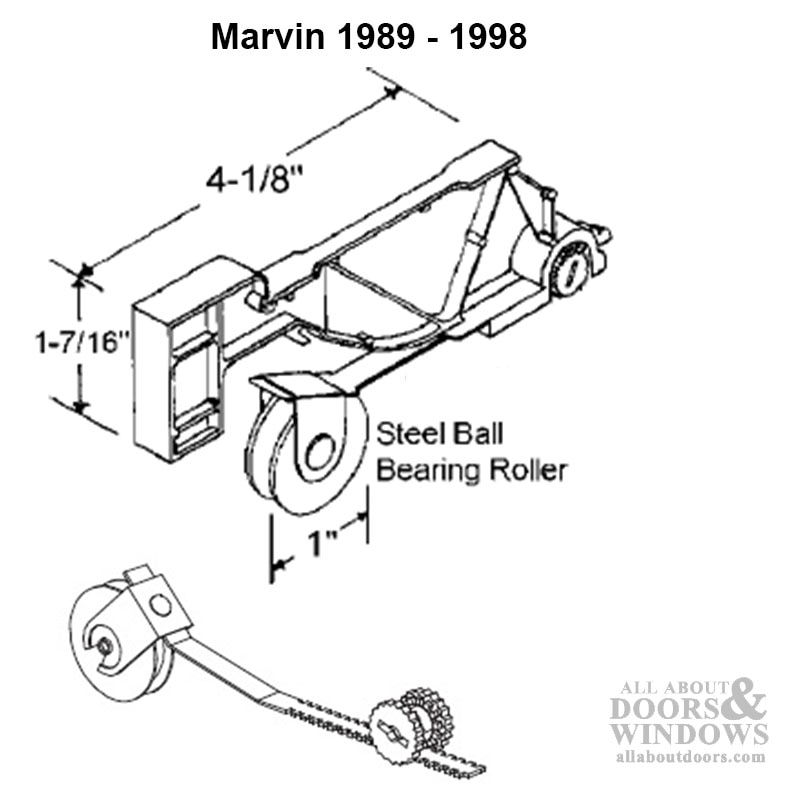

Marvin screen roller with with gear and 1 inch steel wheel
Weather Shield Windows and Doors discontiuned in 2007
Marvin Service Dates: 1989 thru May 1998
Door: Wood and Clad Terrace Doors
Overall Length: 4-1/8 inches
Height: 1-7/16 inches
Roller Diameter: 1 inch
Roller Material: Steel
Patent Number on Housing: 4805262
Replacement Option:

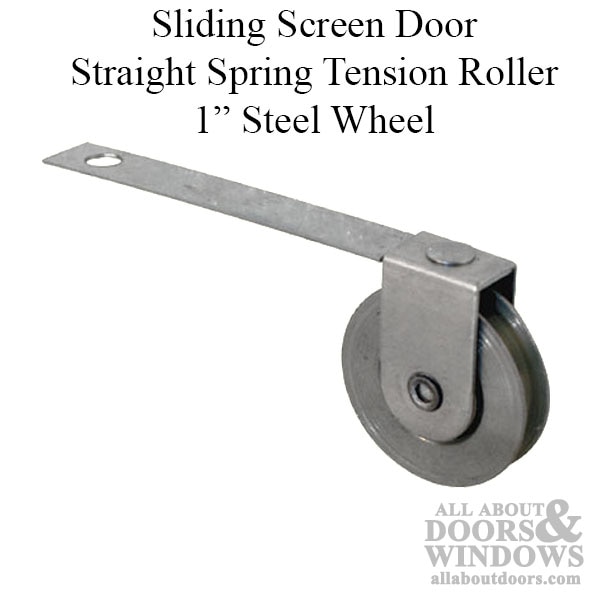

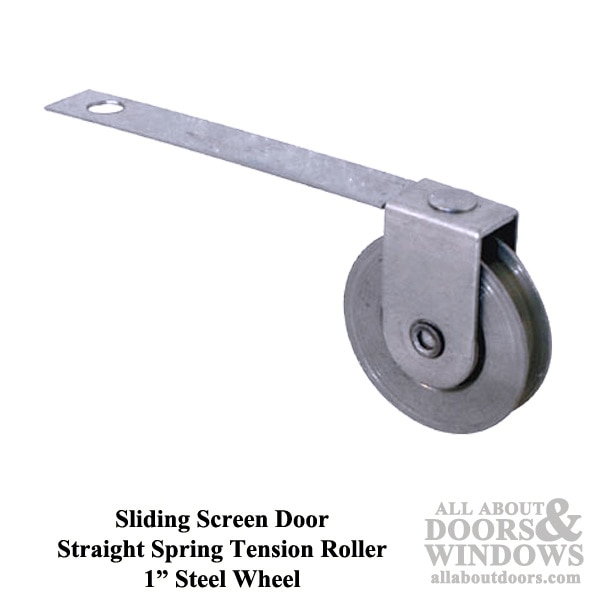

11082* - 2-1/2 inch Straight Spring tension roller.

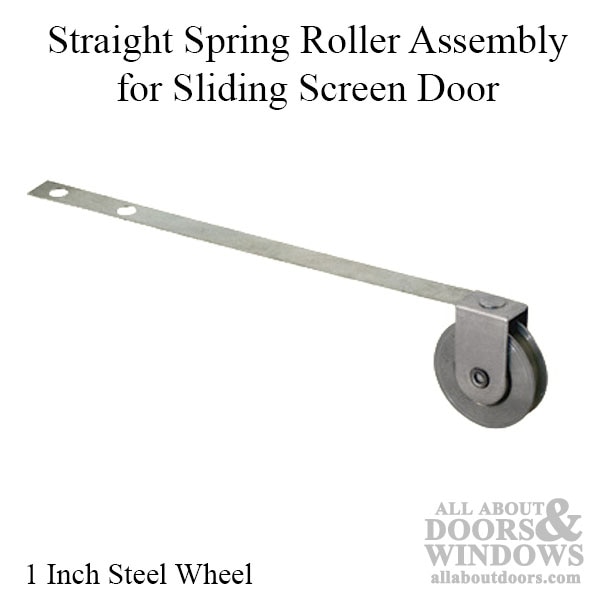

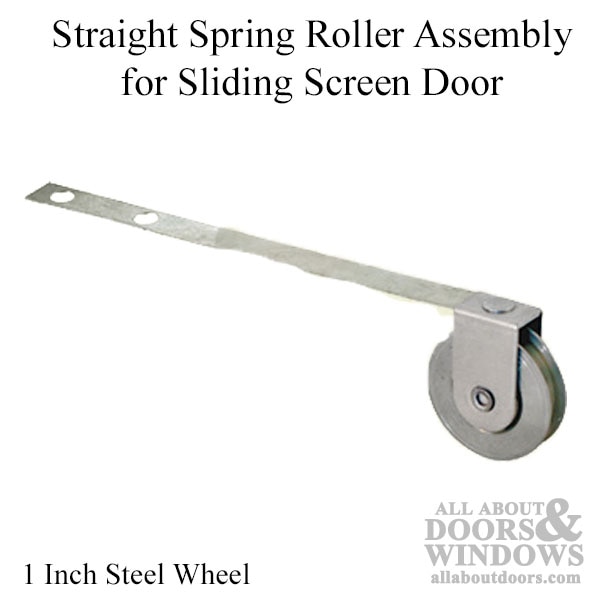

11052 - 4-1/2 inch Straight Spring tension roller.

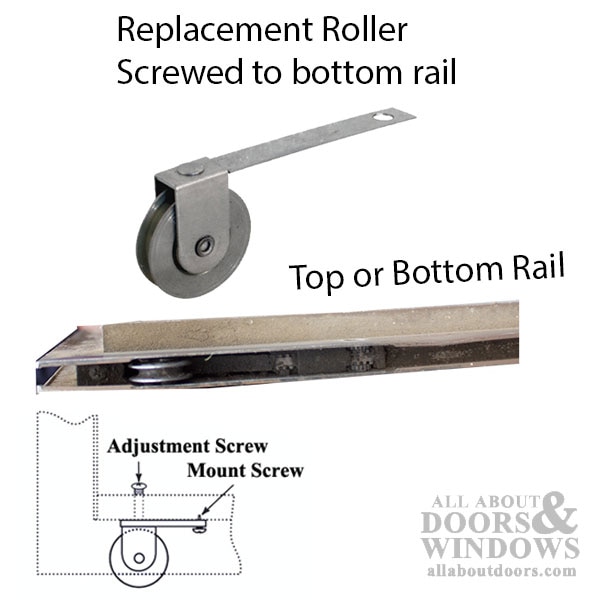

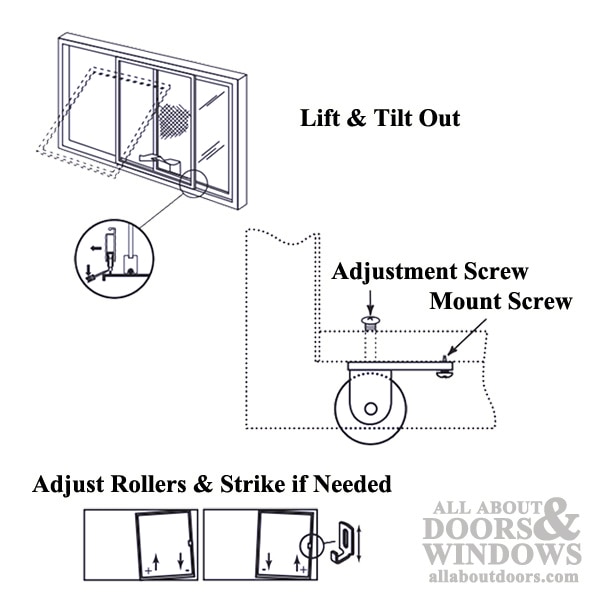

NOTE*: Best possible option for replacement of this roller would be to install our #11082 or similar roller with straight tension spring. Then drill hole in frame and install a screw that will push the roller down for adjustment (see additional images)
