Marvin Inactive / Dummy Trim for Passive door - Satin Taupe

Marvin inactive or dummy trim for hinged passive patio door

Used by Marvin, but will fit other doors with the same configuration.

Back-plate Length: 10-1/8 inch

Back-plate Width: 1-7/8 inch

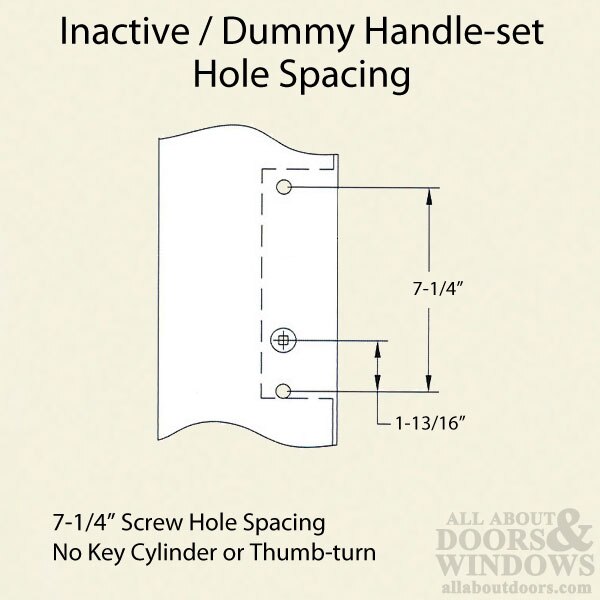

Screw Hole Spacing: 7-1/4 inch

Construction Material: Zinc

Spindle: 5/16 inch Square

Spindle Length: 4-5/16 inch

Color / Finishes: Satin Taupe

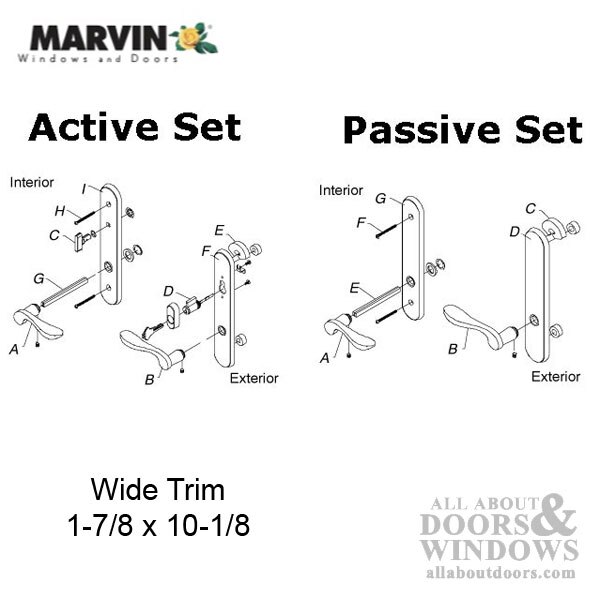

Available Functions:

Active: Keyed on exterior, Thumb turn on interior

Inactive: Levers move so they can operate an inactive lock, No Thumb Turn

Dummy: Levers do not move, they are fixed and can not operate lock.

The inactive is converted to dummy when required,  by adding a fixing plate to levers (included with Package)

Priced and sold as a package.
