Marvin Inactive / Dummy Trim for Passive door - PVD Satin Nickel

Part Number: 10830422
Price: $349.34

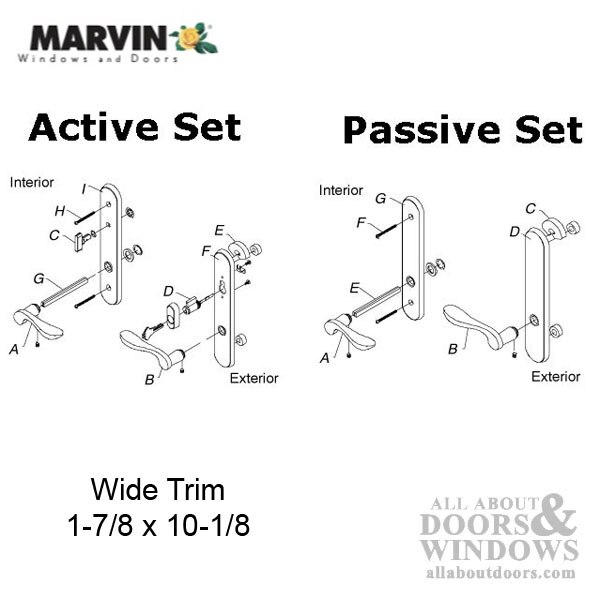

Marvin inactive or dummy trim for hinged passive patio door

Used by Marvin, but will fit other doors with the same configuration.

Back-plate Length: 10-1/8 inch
Back-plate Width: 1-7/8 inch

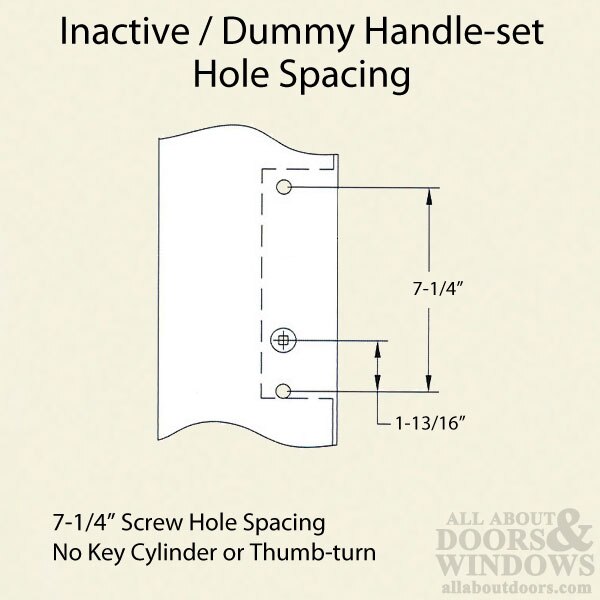

Screw Hole Spacing: 7-1/4 inch
Construction Material: Brass
Spindle: 5/16 inch Square
Spindle Length: 4-5/16 inch

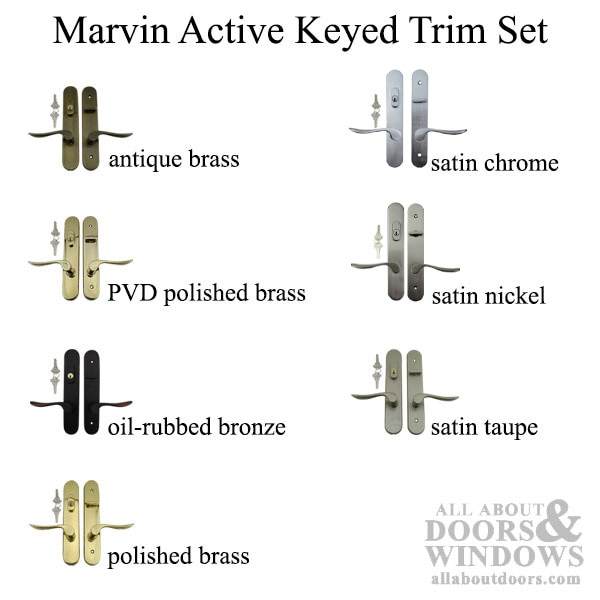

Color / Finishes: PVD Satin Nickel, High Performance no tarnish

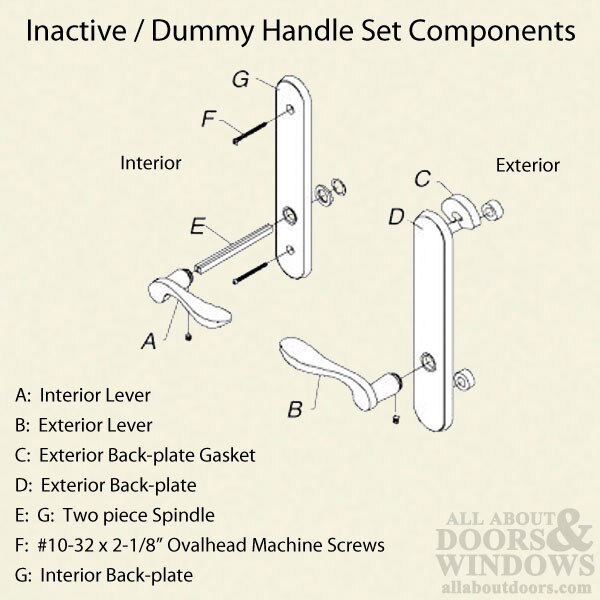

Available Functions:
Active: Keyed on exterior, thumb turn on interior
Inactive: Levers move so they can operate an inactive lock, no thumb turn
Dummy: Levers do not move, they are fixed and can not operate lock.
The inactive is converted to dummy when required, by adding a fixing plate to levers (included with package)

Priced and sold as a package.
