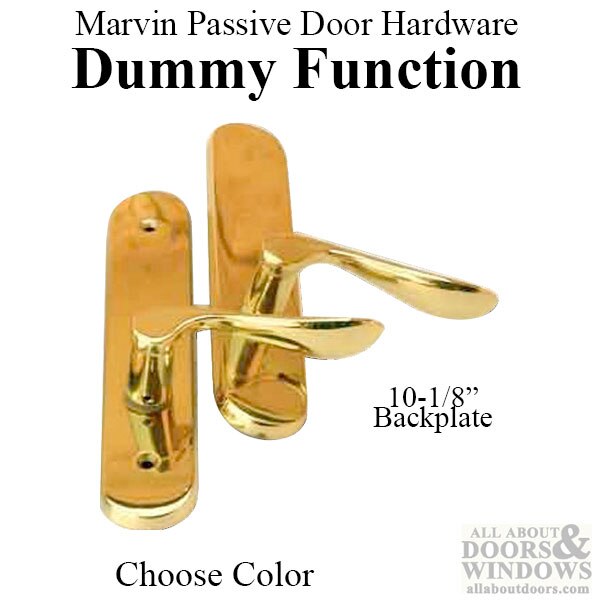

Marvin Inactive / Dummy Trim for Passive door - PVD Brass

Part Number: 10830326
Price: $448.77

Marvin inactive or dummy trim for hinged passive door


Used by Marvin, but will fit other doors with the same configuration.


Back-plate Length: 10-1/8 inch

Back-plate Width: 1-7/8 inch

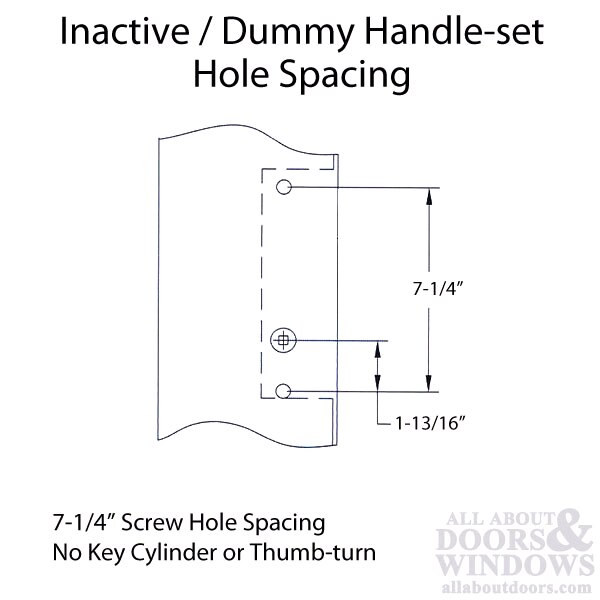

Screw Hole Spacing: 7-1/4 inch

Construction Material: Solid Brass

Square Spindle: 5/16 inch x 4-5/16 inch


Color / Finishes: High Performance (PVD) Polished Brass (will not tarnish)

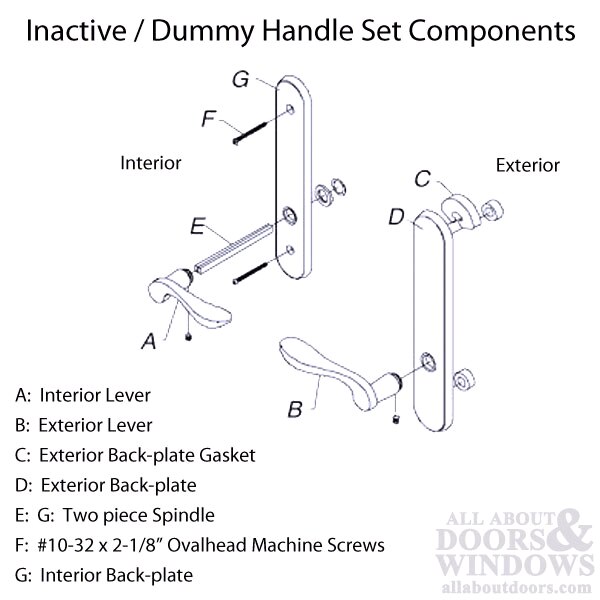

Available Functions:

Active: Keyed on exterior, Thumb turn on interior

Inactive: Levers move so they can operate an inactive lock, No Thumb Turn

Dummy: Levers do not move, they are fixed and can not operate lock.

The inactive is converted to dummy when required, by adding a fixing plate to levers ( included with Package)


Priced and sold as a package.


Related Marvin Trim for Inactive or Dummy Hardware:

10830318 - Satin Taupe

10830312 - Antique Brass

10830316 - White

10830320 - Satin Chrome

10148154 - Oil Rubbed Bronze

10830322 - ORBZ PVD

10830326 - Brass PVD

10830422 - Satin Nickel PVD

10830328 - Dark Bronze

10830314 - Polished Chrome

10148157 - Matte Black
