Marks Privacy Lever & Plate Mortise Lockset, Left Hand Reverse - Satin Chrome

Part Number: 301205
Price: $435.75
Marks LA118 Custom Mortise lockset with \"American\" style levers.
Handing: Left Hand Reverse
Function: Privacy

2012 List Price $ 817.00 - Special 1 of a kind, this lock only price $ 295.00

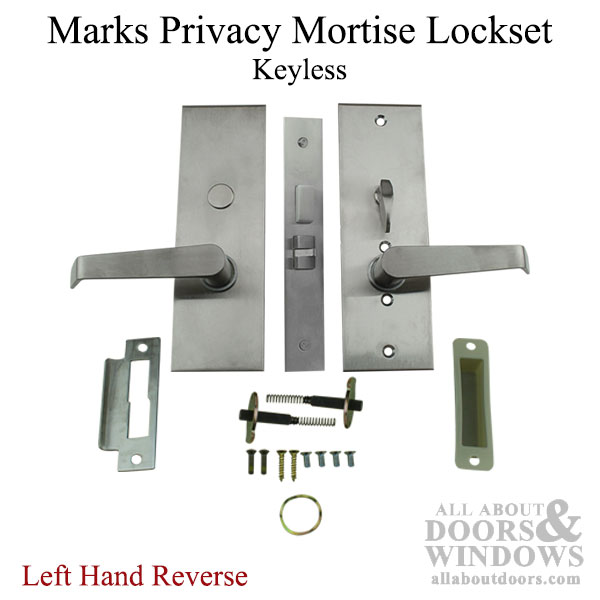

Contents:
Left Hand mortise lock
Exterior trim
Interior trim
Interior Lever cam spindle
Exterior Lever cam spindle

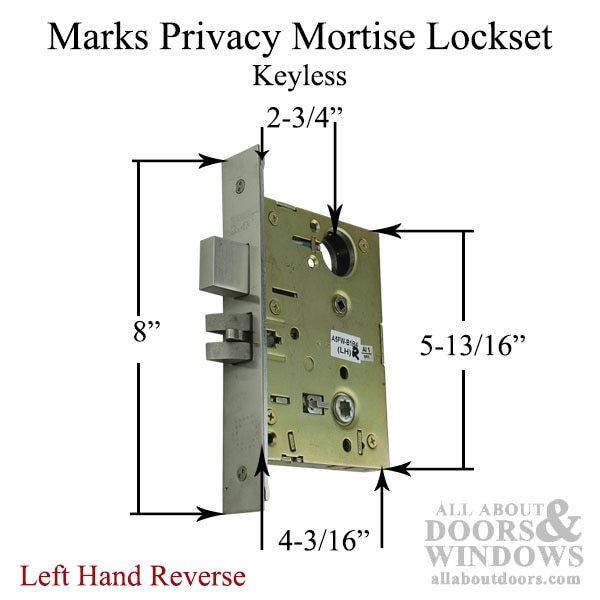

Plate Height: 8-1/2 Inch
Plate Width: 2-3/4 Inch
Plate Hole Center: 7-3/8 Inch
Mortise Plate Length: 8 Inch
Mortise Plate Width: 1-1/4 Inch
Mortise Length: 5-13/16 Inch
Mortise Width: 4-3/16 Inch
Mortise Backset: 2-3/4 Inch

Brushed stainless steel plate assemblies with machined lever bearings. Screwless stainless steel levers assembled to plate with hardened snap rings. (Levers cannot be removed without disassembling trim plates from inside.)

Exterior: 4 welded thru-posts. Center posts pass through lock body, automatically aligning trim 8-1/2\" x 2-3/4\" x 1/8\" thick.
Interior: 4 stainless steel, tamper-proof mounting bolts connecting inside plate, 8-1/2\" x 2-3/4\" x 1/8\" thick.
Strike: 4-7/8\" x 1-1/4\" x 3/32\" thick, 5/8\" curved lip. Conforms to ANSI spec., A115.1.
Door Thickness: 1-3/4\" standard.

Priced and sold as a package.
