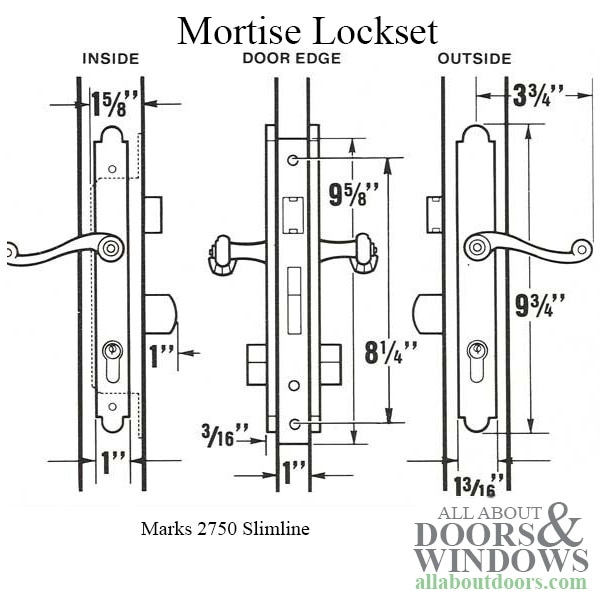

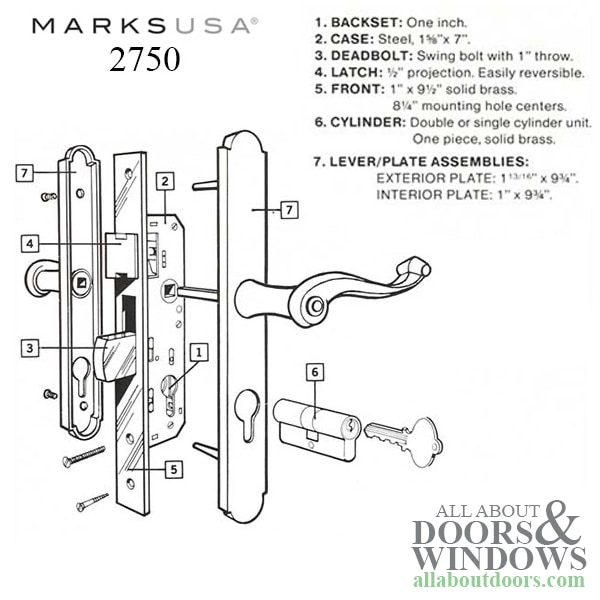

Marks 2750 Thin SlimLine Mortise Lever Lock set.
Keyed Cylinder: Single Cylinder with key on one side
Keyway: Kwikset Standard, Schlage Optional

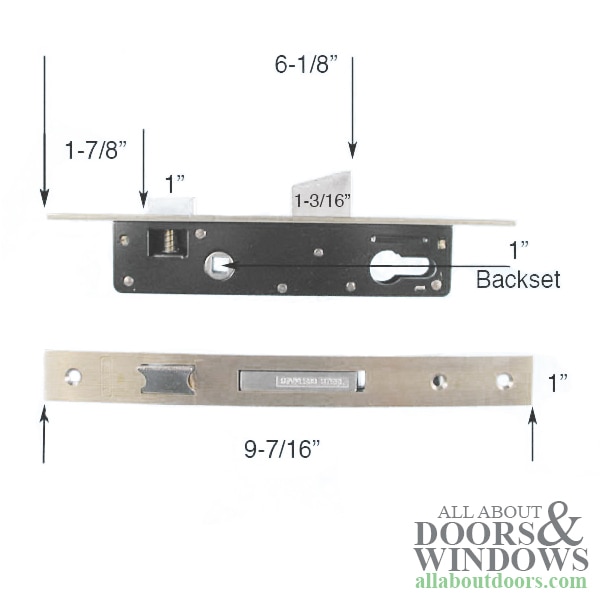

Lock Face Plate: 1 x 9-7/16 inches.
Mounting screw holes spaced at 8-1/4 inches.
Backset : 1 inch.
Handing can be Reversed.
Standard Color / Finish:
Antique Brass, uses a Satin Brass Color for the single cylinder w/ thumb turn

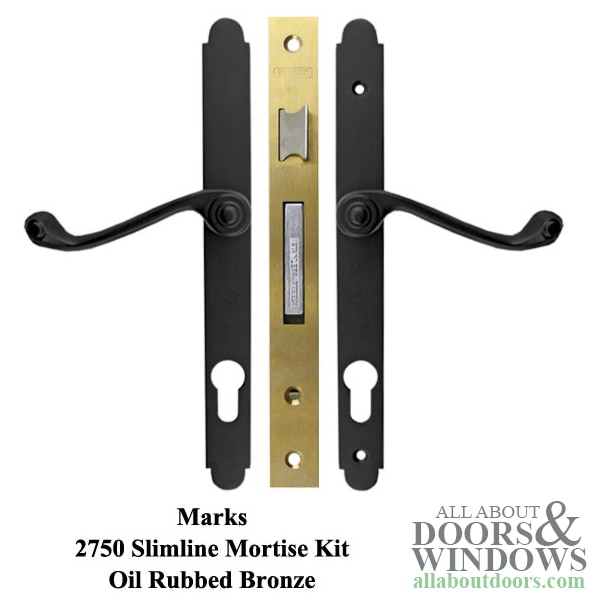

Oil Rubbed Bronze, uses a Satin Brass Color for the single cylinder w/ thumb turnNote: Key must be installed and turned to 11:00 or 1:00 position (depending on which side of the cylinder you're on) in order to remove and install cylinder.
To change the handing: Loosen screw on the back of the latch about 5 turns, pull out the latch and rotate 180 degrees and then put back in and tighten screw.
Related Marks Euro Cylinders
301099 - Schlage, Single Cylinder, SC1 key blank
301098 - Schlage, Double Cylinder, SC1 key blank
301097 - Kwikset, Single Cylinder, KW1 key blank
301096 - Kwikset, Double Cylinder, KW1 key blank
Related Lock Hardware:
301059 - Marks Brand Slimline Lockset, 4 finishes
301080 - CEL Brand Slimline 1 inch (25mm) Backset - Brass
Note: the CEL & Marks have different screw hole pattern
Substitute Available - Similar Mortise lock with different hole pattern and Latch and Dead bolt position: see 301080
