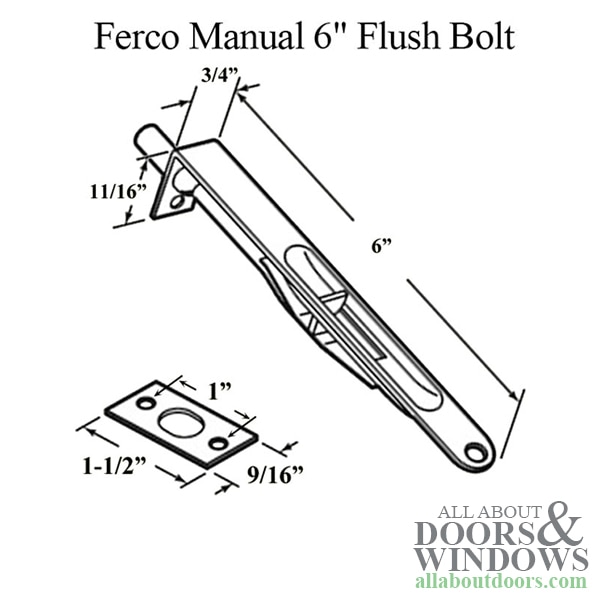

Ferco Manual 6" Flush Bolt, Route-In Radius Corner
GU/Ferco 6 inch manual route-in flush bolt with small 1/4 inch bolt and round corners.
Manual Flush Bolt for Inactive/Passive panels of Double or French door systems.
Series: Multi-point Door Lock Accessories - Manual Flush Bolt - Route-In
Overall Size: 152 mm (6 inches)
Length: 6 inches (152.4 mm)
Bolt Diameter: small 1/4 inch (6.35 mm)
Projection of Locking Rod is 25.4 mm (1 inch)
Finish: Polished Brass US3 or Polished Stainless Steel, US32D
Screw holes: 3-5/8 inch ( 92 mm)
Corner Design: Radius/Round
Body Material: Stainless Steel
Handed: NO , Left or Right Handed
Priced and sold each.
The Manual Flush Bolt from G-U Hardware, Inc. is an optional means of securing the inactive panel of a double or French door system.
The ease of operation and simple installation of this attractive flush bolt has once again set us apart from the rest.
Whether you prefer the polished look of brass or corrosion resistant stainless steel finish, you can rest assured that you will find comfort knowing your door is properly secured.
Key Features:
• Ideal for the inactive panel of double entrance doors, patio doors, or interior doors
• Stainless steel locking rod
• Full 1 inch (25.4 mm) projection of locking rod
• Industry standard size
• Non-handed
• Body constructed of steel
• Available in polished brass or in stainless steel finish for increased corrosion resistance
• Stainless steel locking plate (router bit available)
