19" Magnum Flush Slide Bolt 3/8" Standard Profile, 5/8" Wide Tip

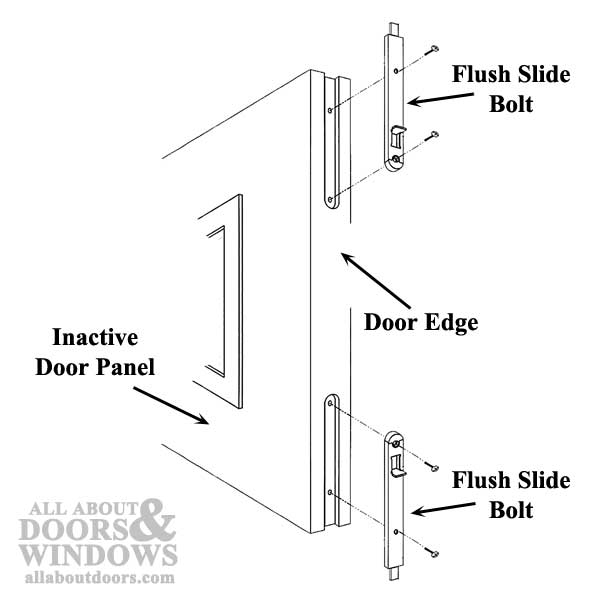

Magnum 19 inch flush slide bolt for wood door astragals.
This slide bolt is used primarily with Trilennium multipoint locks.

Available in 2 Lengths:  9 or 19 inch for taller doors.

Available in 2 Profiles: 1/4 or 3/8 inch

Available in 2 Tip Widths: 3/8 or 5/8 inch

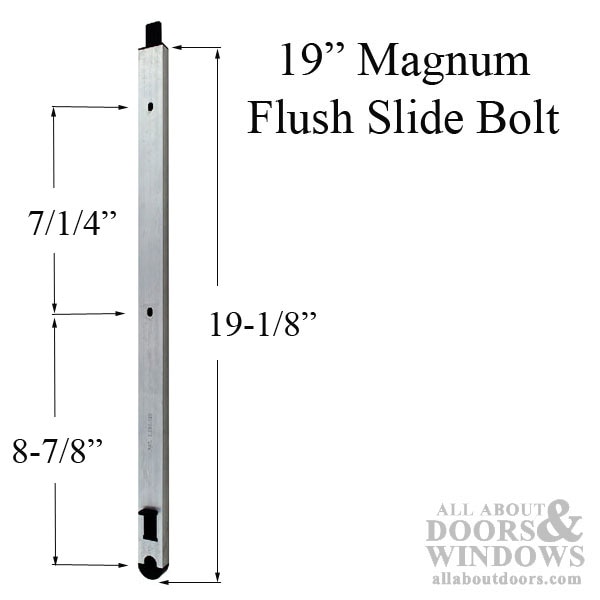

Magnum Bolt Specifications:
Housing length: 19-1/8 Inch
Housing thickness: 1/2 Inch
Housing width: 1  Inch
Bolt throw: 1 Inch
Bolt width: 5/8 Inch
Bolt thickness: 1/8 Inch
Installation Screw Holes: 3
Square Corner Screw Center: 7-1/4 Inch
Radius corner to Center of screw hole: 5/8 Inch
Markings: Pat. # 6,666,486  ( 6.666.486)

Contents: 1 Flush Bolt, no screws

Related Parts:
362039 - Magnum Strike Plates
