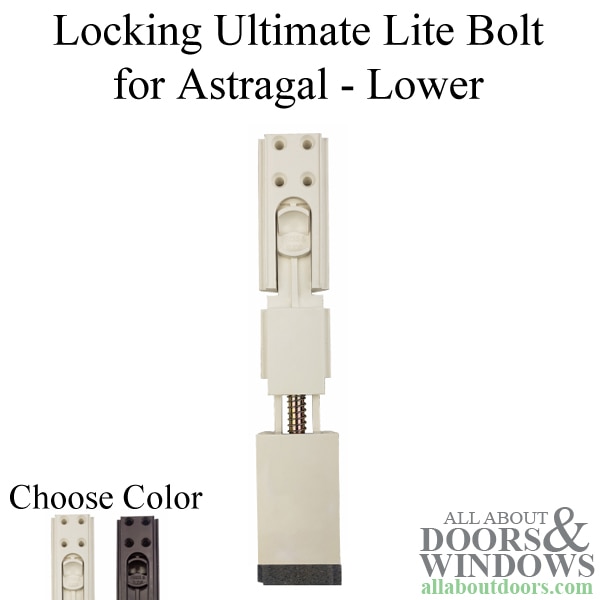

Locking Ultimate Lite Bolt for Astragal, Lower - Choose Color
Endura double-door ultimate lite locking astragal upper bolt
This attaches to the bottom of your astragal (affixed trim piece or post that blocks the gap in a set of double doors) and goes down into the floor to fix the passive door in place.
Used by Jeld-Wen, Masonite, Plastpro, Therma-Tru and others

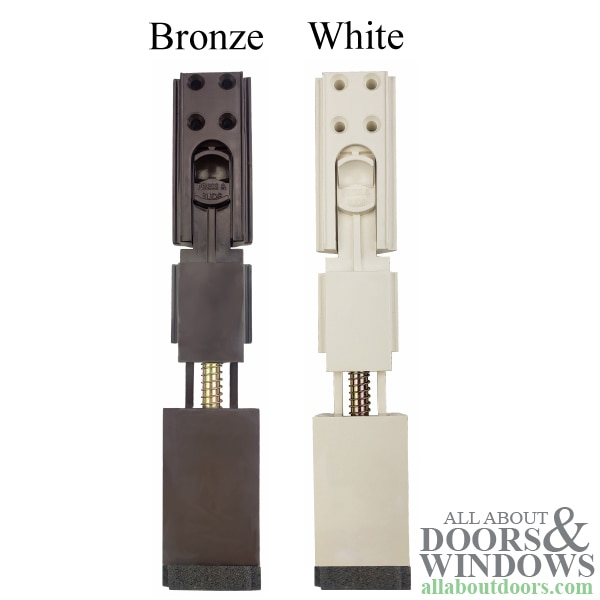

Body Color Options: Bronze or White

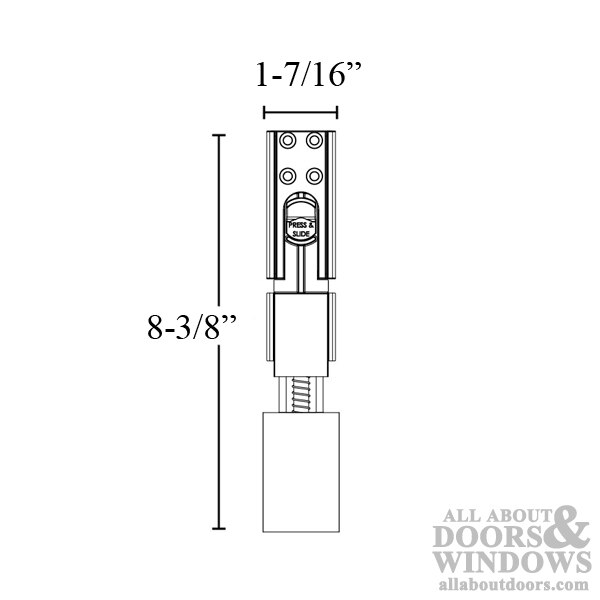

Length: 8-3/8"
Width: 1-7/16"
This is the lower bolt. Upper bolt is 362046
- For inswing astragals, one upper and one lower bolt are required.
- For outswing astragals used with outswing bumper sills, two upper bolts are required and no lower bolts are used.
- For outswing astragals used with outswing sills that are not bumper style, one upper and one lower bolt are required.
This attaches to the bottom of your astragal (affixed trim piece or post that blocks the gap in a set of double doors) and goes down into the floor to fix the passive door in place.
Used by Jeld-Wen, Masonite, Plastpro, Therma-Tru and others
Body Color Options: Bronze or White
Length: 8-3/8"
Width: 1-7/16"
This is the lower bolt. Upper bolt is 362046
- For inswing astragals, one upper and one lower bolt are required.
- For outswing astragals used with outswing bumper sills, two upper bolts are required and no lower bolts are used.
- For outswing astragals used with outswing sills that are not bumper style, one upper and one lower bolt are required.
