Mortise Lock, Sliding Patio Door, Vertical Key way - Stainless Steel

Part Number: 15100-SS
Price: $77.69
Mortise lock for sliding patio door constructed out of stainless steel with an adjustable bolt throw.

Used by Adams Rite, Andersen, Weather Shield, and others, Fits: Anderson Gliding doors 1968-1993,
Weathershield 1978-1991 Glass Sliding Patio Doors

This lock requires a mortise installation.
This mortise lock can withstand up to 1000 pounds of force and resist pry bar attacks.

Dead Lock has an adjustment screw on faceplate to adjust bolt throw
The screw will move the latch in and out to allow a snug fit when locking door.

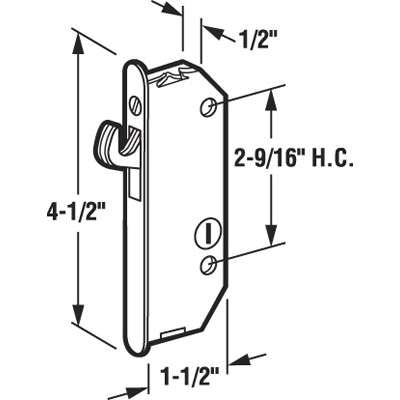

Height: 4-1/2 Inch
Width: 1/2 Inch
Offset: 1-1/2 Inch
Screws Center - Center: 2-9/16 Inch
Keyway: Vertical
Material: Stainless Steel
Priced and sold each.
Designed for wood door stiles
Sold Each

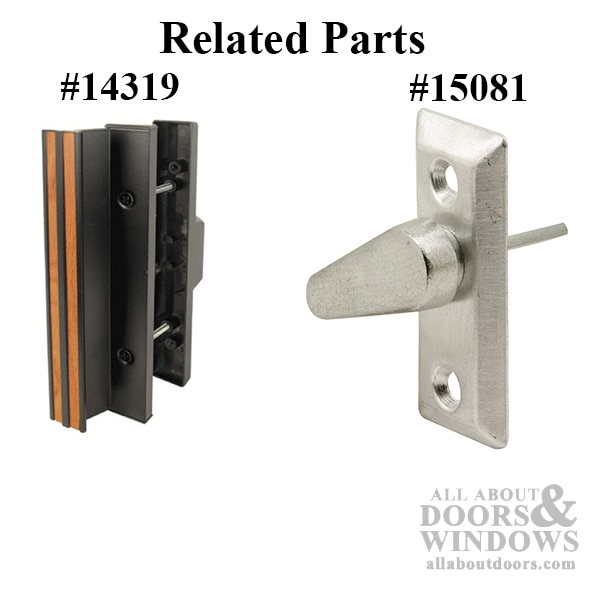

Related Mortise Lock:
1997156 - Steel Mortise Lock

Related Andersen Parts:
1997291 - Inside thumb latch (White)
1997189 - Inside thumb latch (Stone)
This product is similar to or the same as the following part numbers in these brands:
Prime-Line Products: E 2100
