Lock Case, Marks 9000 Series Mortise, LH / RHR, 5/16 Spindle

Part Number: 301069
Price: $95.00
Marks 9A - 9000 series lock case with 5/16" Hub and 1 x 7-1/8" faceplate
Used with the 9215 or 9225 lever handles.

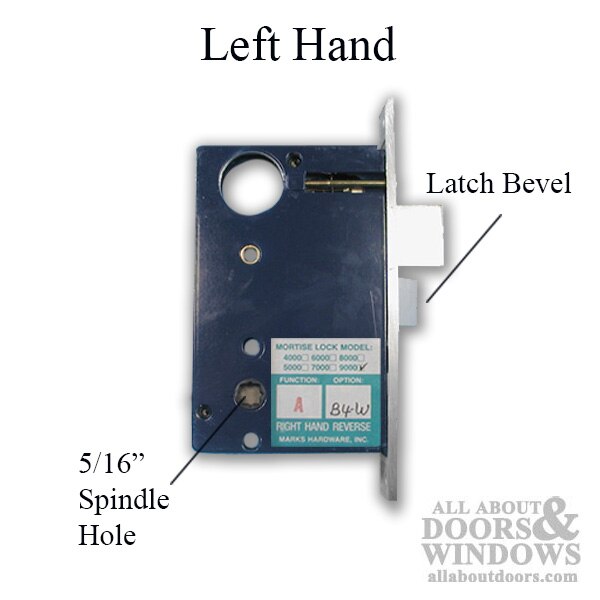

Features a 5/16 inch square spindle hole.

Faceplate Measures: 1 x 7-1/8
Face plate color: Satin Brass or Satin Chrome
Backset: 2-1/2 inch

Hub: 5/16" Square
Priced and sold each.
Handing: Left Hand / Right Hand Reverse
Locks are handed but may be reversed.

NOTE:
Locks are handed but may be reversed.

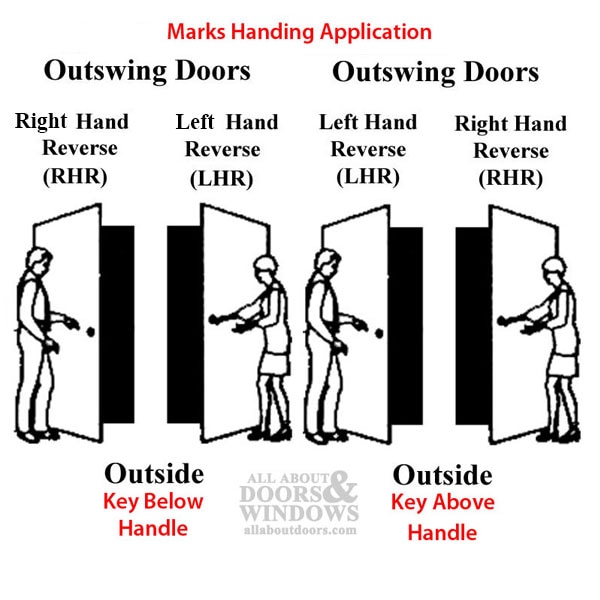

Right hand inswing has the same latch bevel as a Left Hand Reverse (outswing door)
There is an Inside and outside to the handles so the latch will always be free for inside exit.

Related Marks Hardware: Outswing Doors
301067 - 9/32" Hub w/ Knobs, Model 21,22 lock case, Left hand Reverse
301068 - 9/32" Hub w/ Knobs, Model 21,22 lock case, Right hand Reverse
301069 - 5/16" Hub w/ Levers, Model 9000 lock case, Right hand Reverse
301070 - 5/16" Hub w/ Levers, Model 9000 lock case, Left hand Reverse

Resource:
How to Rehand Marks Mortise Locks
