Limit Device - Door Stop 454S
Glynn-Johnson 454S Medium Duty Overhead Door Stop -

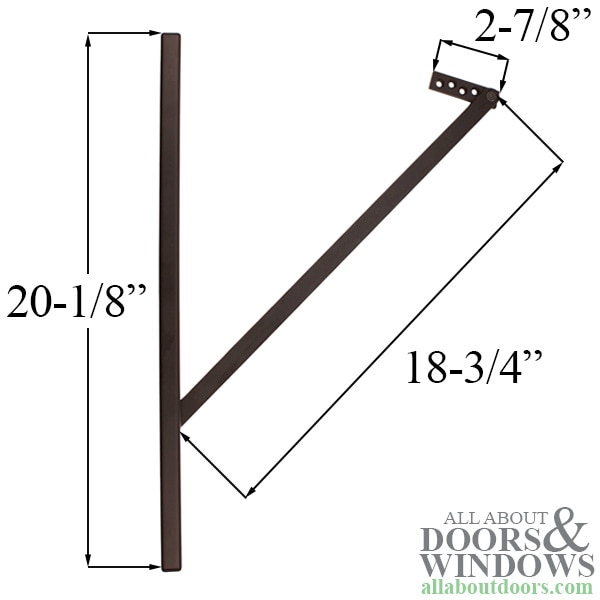

Stop Bar Length: 20-1/8"
Arm Length: 18-3/4"
Shoe Length: 2-7/8"
Door Thickness: 1-3/4 inch
Door Width: 33-1/16 - 39 inch ( Standard Hinges / Offset Pivots)
Door Width: 39-1/16 inch - 45 inch (Center Hung Pivots)
Color: Dark Bronze, etc.
Handing: Non-handed
Stop Bar Length: 20-1/8"
Arm Length: 18-3/4"
Shoe Length: 2-7/8"
Door Thickness: 1-3/4 inch
Door Width: 33-1/16 - 39 inch ( Standard Hinges / Offset Pivots)
Door Width: 39-1/16 inch - 45 inch (Center Hung Pivots)
Color: Dark Bronze, etc.
Handing: Non-handed
Additional Information:
Improved compatibility with door closers
Improved jamb bracket design Single acting doors
Interior applications
Durable
Easy to install
Improved corrosion resistance
Includes Mounting Hardware and Installation Template
US3 Polished brass
US4 Satin brass
US10 Satin bronze
US10B Oil rubbed bronze
US32 Polished stainless steel
US32D Satin stainless steel
SP4 Powder coast brass
SP10 Powder coat bronze
SP28 Powder coat aluminum
SP313 Powder coat dark bronze
SPBLK Powder coat black
652 Chrome-like coating
Glynn-Johnson 450 series holders and stops provide reliable and versatile surface-mounted overhead door control for all medium to light-duty applications. The visible components are available in a wide variety of architectural finishes to complement any design. The 450 series holders and stops are designed for installation in virtually all types of doors and frames including doors with conventional butt hinges, offset pivots, continuous hinges, swing clear hinges and many other specialty hinges. The templates provided allow for variable mounting positions, ranging from 85 Deg. - 110 Deg. of opening.
Provide reliable and versatile surface-mounted overhead door control for all medium to light-duty applications.
Improved compatibility with door closers
Improved jamb bracket design Single acting doors
Interior applications
Durable
Easy to install
Improved corrosion resistance
Includes Mounting Hardware and Installation Template
US3 Polished brass
US4 Satin brass
US10 Satin bronze
US10B Oil rubbed bronze
US32 Polished stainless steel
US32D Satin stainless steel
SP4 Powder coast brass
SP10 Powder coat bronze
SP28 Powder coat aluminum
SP313 Powder coat dark bronze
SPBLK Powder coat black
652 Chrome-like coating
Glynn-Johnson 450 series holders and stops provide reliable and versatile surface-mounted overhead door control for all medium to light-duty applications. The visible components are available in a wide variety of architectural finishes to complement any design. The 450 series holders and stops are designed for installation in virtually all types of doors and frames including doors with conventional butt hinges, offset pivots, continuous hinges, swing clear hinges and many other specialty hinges. The templates provided allow for variable mounting positions, ranging from 85 Deg. - 110 Deg. of opening.
Provide reliable and versatile surface-mounted overhead door control for all medium to light-duty applications.
