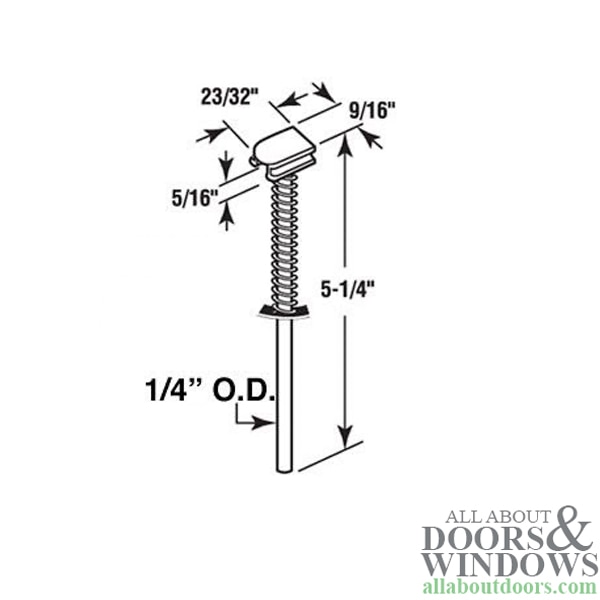

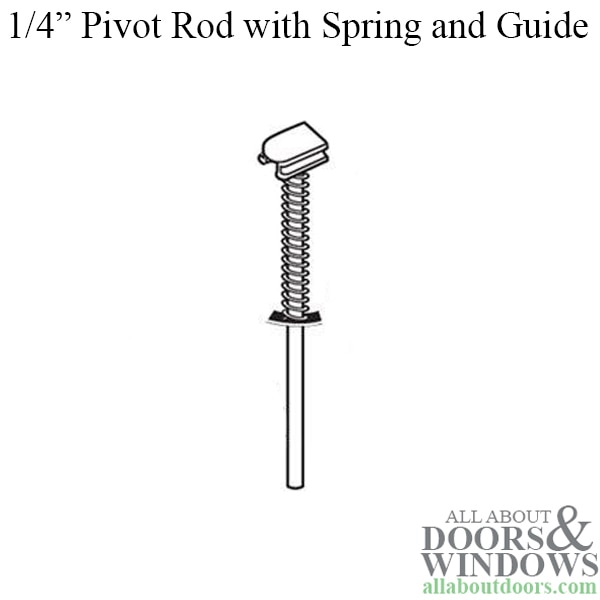

Leigh - Monarch 1/4 Pivot Rod, spring & Thick H-Shaped Guide

Part Number: 26523
Price: $8.46

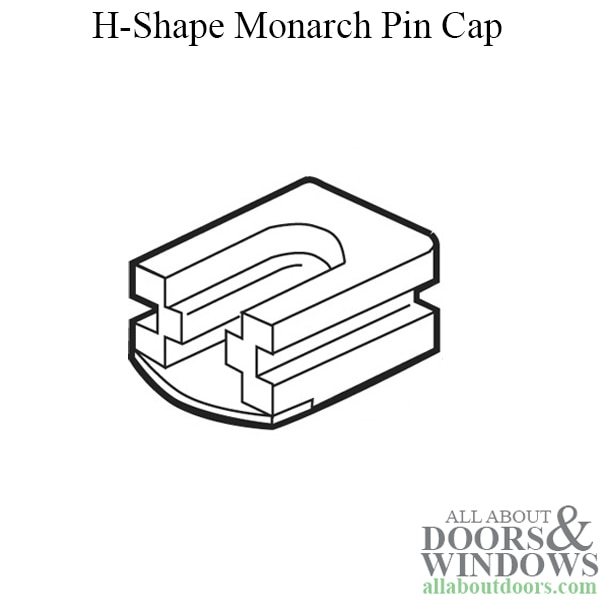

Discontinued - Replace with 26517 and 26621

Steel guide rod with nylon cap, spring, and snap ring
Used by Leigh Door from 1966 thru 1967

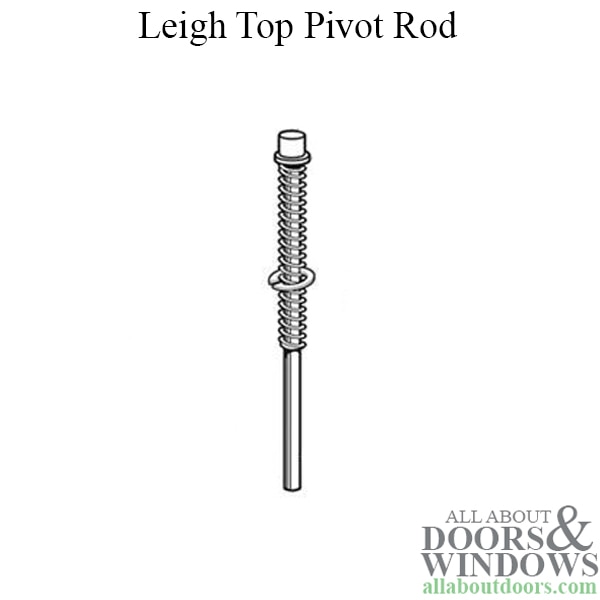

(See part no. 26517 Guide Rod for 1961 thru 1966)
Sold each

Diameter: 1/4-inch
Length: 5-1/2-inch
Material: Steel
Type: Pin Guide Pin
This product is similar to or the same as the following part numbers in these brands:
Prime-Line Products: N 6741
SlideCo: 163474
