Left Hand 6-11/16 Inch Rear Face Mounted Dyad Casement Operator for Window

Part Number: 58060
Price: $59.95

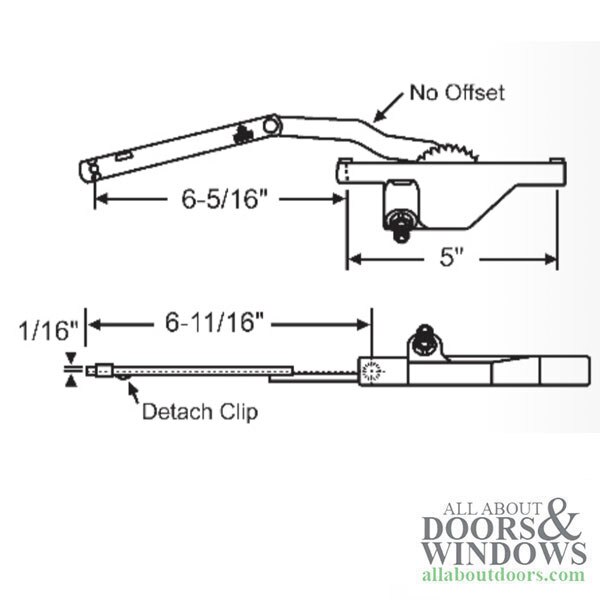

Amesbury Truth Hardware rear mount Dyad sash crank operator 5" screw hole centers, 5" link arm length, 6-11/16 inch when arm is straight measured to screw hole.

Application: Casement windows
Operator Type: Truth Dyad, rear mount
Body Length: 5-7/16 Inch
Body Width: 1-5/8 Inch
Body Screw Hole Center: 5 inch
Screw Thread: 8-32
Link Rivet to Stud post hole: 4-1/2 inch
Link Length: 5 inch
Arm & Link thickness: 1/16 inch
Arm Extended to screw Hole: 6-11/16 inch
Slide Detach Clip: Under arm
Handing: Yes, Left and Right Hand as shown
Material: Zinc Die Cast & Steel Gears
Link Markings: 30866
Colors: Bronze or White
Priced and Sold Each, no handle, no screws

NOTE: The Primary arm is longer on this operator than the 55113 or 55112
