Replacement for Papaiz complete Slimline mortise lock Handle set.
323 Lock Case uses 13/16 inch x 7-11/16 inch face plate.
Will replace Emtek, Pado, and Juraico Brands.
For doors 1 to 1-1/4 inch thick.
Center of Handle to Center of Key hole: 2-7/8 inch
Trim Plate Top Center to Bottom Center Screw Hole: 6-9/16 inch
Lock Plate Top Center to Bottom Center Screw Hole: 7 inch
Lock Latch Center to Bolt Center: 2-3/4 inch
Bolt Length: 1-1/8 inch
Cylinder Screw to Bottom Lock Hole: 13/16 inch

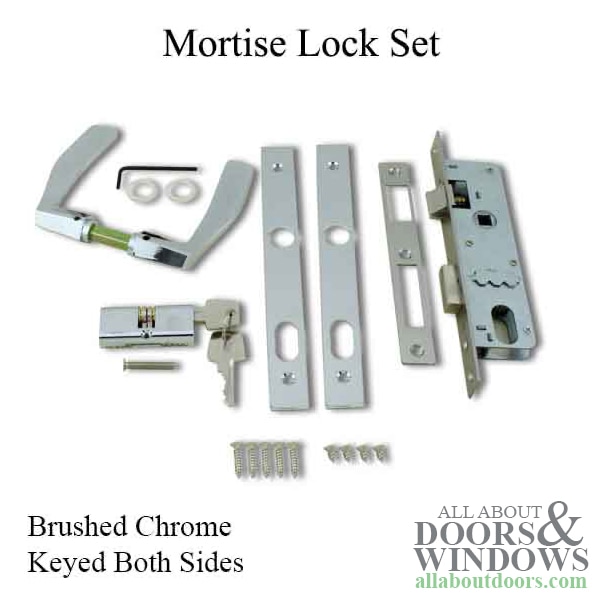

Includes handles, trim plates, 323 lock case, screws, and double cylinder lock with 2 keys.
Keyed cylinder is NOT rekeyable.
For help with installation of Papaiz and replacement for Papaiz locks, please read Papaiz Lock Installation Instructions
Priced and sold each.
Related Parts: Extra key blank - 301040Cylinder Only - 301016
