KFV 45/92 Hook Version, 2 hooks, 20mm Faceplate
Old Stock, Discontinued & limited to existing inventory. AS IS, NO RETURNS ( 3 or more only $50 each + Shipping)
Can be cut down to make single point locks.
These are over 10 years old, they are new, but may look otherwise.
They must be lubricated before installing.

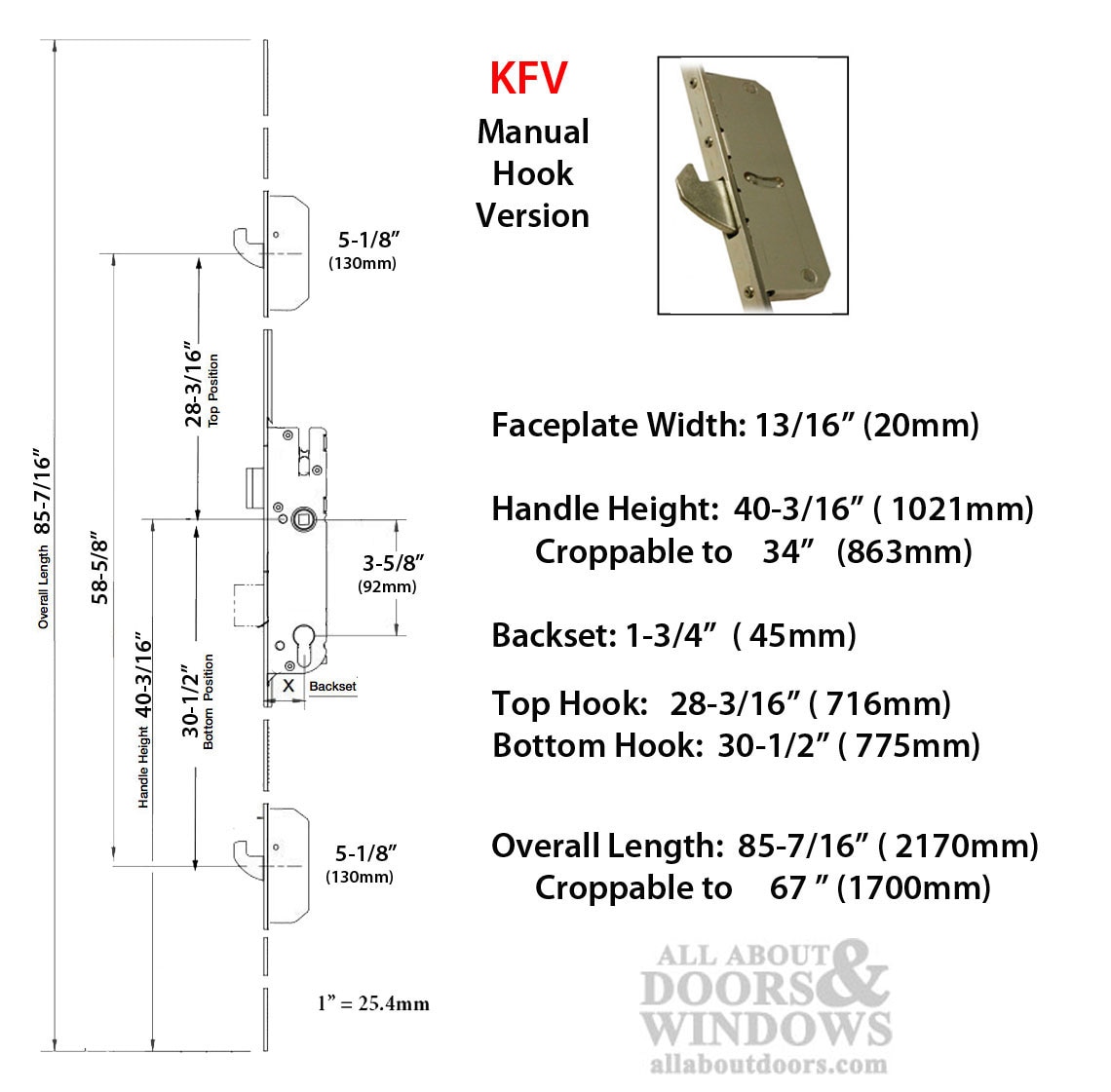

KFV Multi-point door lock, 45mm Backset, lever operated, 2 hooks, 1 deadbolt
Lock Type: Euro, Profile Cylinder - Key or Thumb turn Operated
Lock Backset: 1-3/4 inch (45mm)
Faceplate Width: 0.787 inch (20mm)
Faceplate Length: 85.43 (2170mm)
Spring Latch - Yes
Deadbolt Throw: 0.63 inch (16mm)
Bullet / Roundbolt throw: 0.787 inch (20mm)
Handed: NO, Springlatch can be reversed by removing screw and reversing latch
Handle PZ: Center of handle to center of Key / Thumbturn 3.62 inch (92mm)
Top Hook @ 28-3/16 inches (716mm)
Bottom Hook @ 30-1/2 inches (775mm)

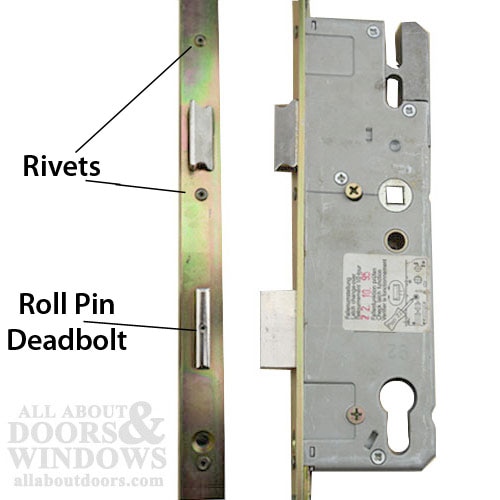

KFV Identifying marks:
Deadbolt has pin in center
Faceplate is connected with Rivets
Lock Operation:
Lift lever to extend 2 Hooks, use key or Thumbturn to throw deadbolt and secure lock
Unlock Operation:
Retract deadbolt with Key or Thumb turn and depress lever to open door.
NOTE: These are not returnable, please be sure this is what you need
Can be cut down to make single point locks.
These are over 10 years old, they are new, but may look otherwise.
They must be lubricated before installing.
KFV Multi-point door lock, 45mm Backset, lever operated, 2 hooks, 1 deadbolt
Lock Type: Euro, Profile Cylinder - Key or Thumb turn Operated
Lock Backset: 1-3/4 inch (45mm)
Faceplate Width: 0.787 inch (20mm)
Faceplate Length: 85.43 (2170mm)
Spring Latch - Yes
Deadbolt Throw: 0.63 inch (16mm)
Bullet / Roundbolt throw: 0.787 inch (20mm)
Handed: NO, Springlatch can be reversed by removing screw and reversing latch
Handle PZ: Center of handle to center of Key / Thumbturn 3.62 inch (92mm)
Top Hook @ 28-3/16 inches (716mm)
Bottom Hook @ 30-1/2 inches (775mm)
KFV Identifying marks:
Deadbolt has pin in center
Faceplate is connected with Rivets
Lock Operation:
Lift lever to extend 2 Hooks, use key or Thumbturn to throw deadbolt and secure lock
Unlock Operation:
Retract deadbolt with Key or Thumb turn and depress lever to open door.
NOTE: These are not returnable, please be sure this is what you need
