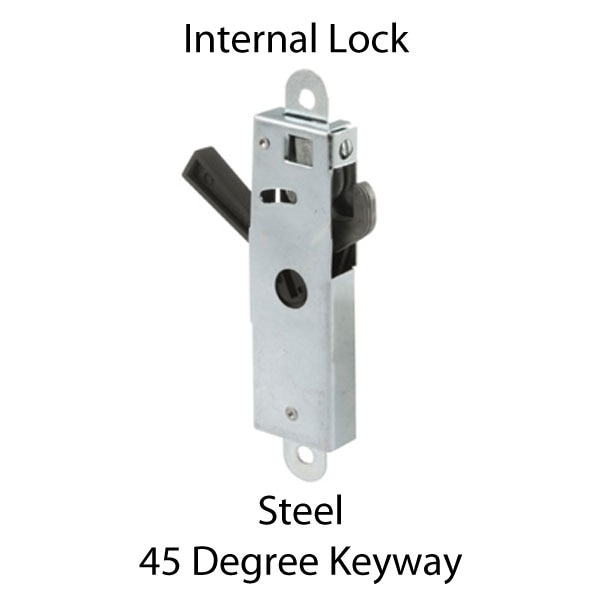

Internal Lock Assembly, 45 Degree Keyway, Sliding Patio Door - Steel

Part Number: 15077
Price: See Description

Out of Stock

Discontinued steel, 45 degree keyway mortise lock for sliding patio door.
This Arcadia Handle set is discontinued and is no longer available, see replacement options below

This lock is used on surface mounted patio doors
The lock housing is constructed out of Steel
The Hook and Latch lever are Steel
Its Hook has an adjustable projection
It has a vertical keyway
Black plastic latch lever.
The hook projects 1/2 inch from stile
No Keeper, Has hole in Frame for hook
This design is used by several door manufacturers including Arcadia and Northrop Architectural

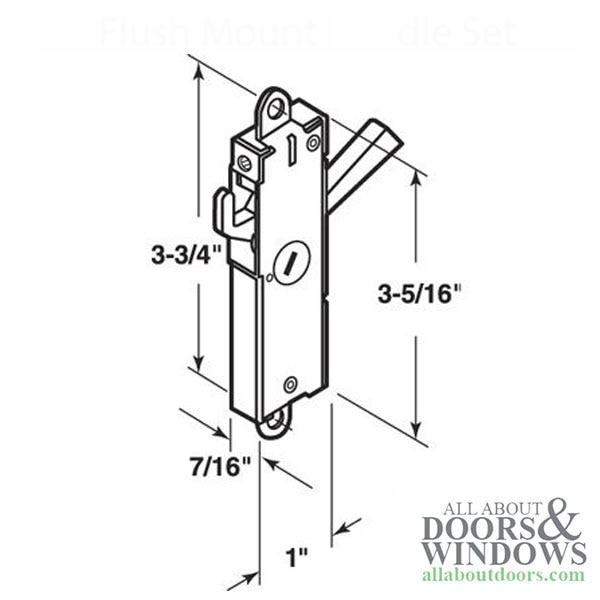

Lock Screw Hole Center: 3-3/4-inch
Keyway: 45 Degrees

DISCONTINUED: This lock is not available, however the handle set can be replaced with 14034.
The 14034 will require shims under the inside handle to move the hook alignment over about 1/4 inch
Related Replacement parts
14034 - Non Keyed
14035 - Keyed
This product is similar to or the same as the following part numbers in these brands:
Prime-Line Products: E 2030
SlideCo: 15510
