Interlock LCL 85mm Aria Handle Set, No Cylinder

Interlock LCL 85mm Aria Handle Set, No Cylinder

Non-handed and designed to be compatible with the INTERLOCK(R) lever compression lock, our handles complete the ideal multi-point locking solution for aluminum and vinyl swing door applications.

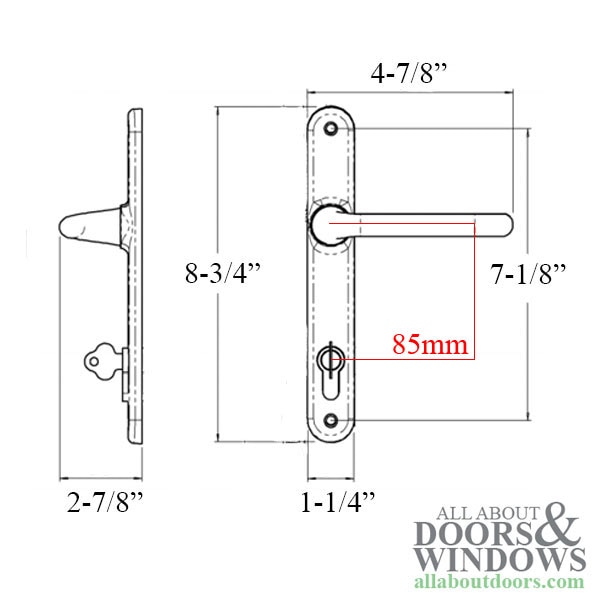

Specifications:

• Handle to Cylinder PZ: 3-5/16 inch (85mm)
• Screw hole Spacing: 7-1/8 inch (181mm)
• Plate Width: 1-3/16 inch (30mm)
• Plate Length: 8-3/4 inch (222mm)
• Plate Thickness: 3/8 inch (10mm)
• Handed: no, fits left or right hand doors
• Color: White, Black, Bronze, Silver, Brushed Chrome
• Handle Screws: 2-3/16 inch (55.6mm) & 2-9/16 inch (65.2mm)
• Screw Thread: M4
• Cylinder Screw: 1-1/2 inch (38.1mm)
• Spindle Length: 3-5/8 inch (92.1)
• Some finishes may be special order

Handle Set includes:

• Interior and Exterior handles
• 3-5/8 inch Spindle
• 4 inch Spindle
• 2-1/8 inch Screw (2) handle screws
• 2-1/2 inch Screw (2) handle screws
• 1-1/2 inch Screw (1) Cylinder Set Screw

Key Features:

• Single-Motion handle activation of deadbolt and all remote locking points
• Zinc alloy composition with nickel plating
• Available in powder-coat and architectural finishes
