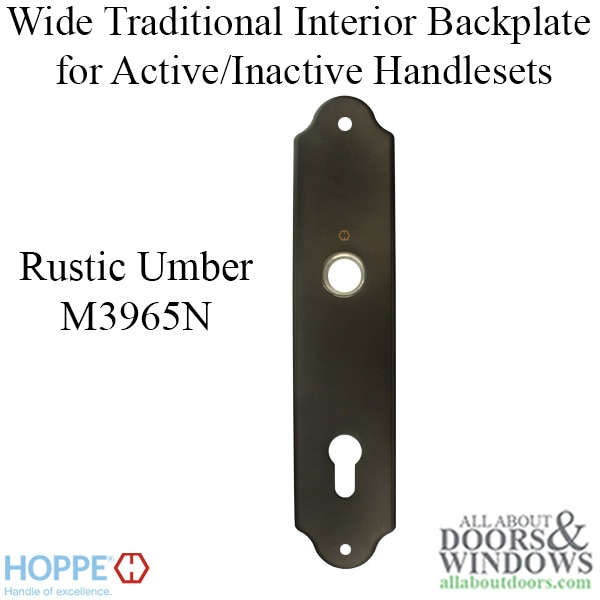

HOPPE Wide Traditional Interior Backplate M3965N for Active/Inactive Handlesets - Rustic Umber
HOPPE Wide Traditional Interior Backplate M3965N for Active/Inactive Handlesets
Replacement backplate to be used with HOPPE multipoint lock trim sets (handlesets)

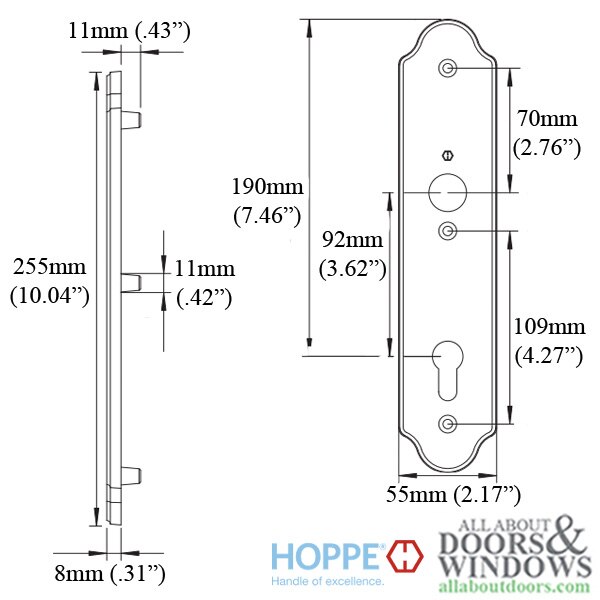

Height: 255mm (10.04 in.)
Width: 55mm (2.17 in.)
Thickness: 8mm (.31 in.)
PZ (Center of Handle Hole to Center of Cylinder Hole): 92mm (3.62 in.)
Center of Top Screw Hole to Center of Handle Hole: 70mm (2.76 in.)
Center of Middle Screw Hole to Center of Bottom Screw Hole: 109mm (4.27 in.)
Material: Solid Brass
Color: Rustic Umber (F8709)
Related Parts:

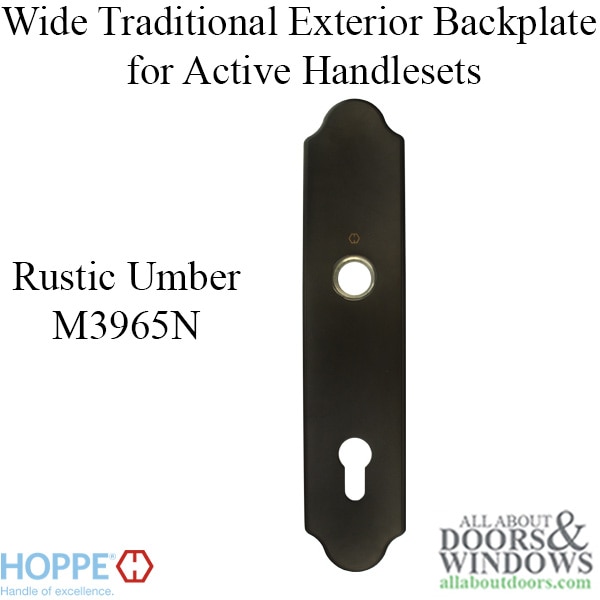

Wide Traditional Exterior Backplate for Active Handlesets in Rustic Umber: 2412105

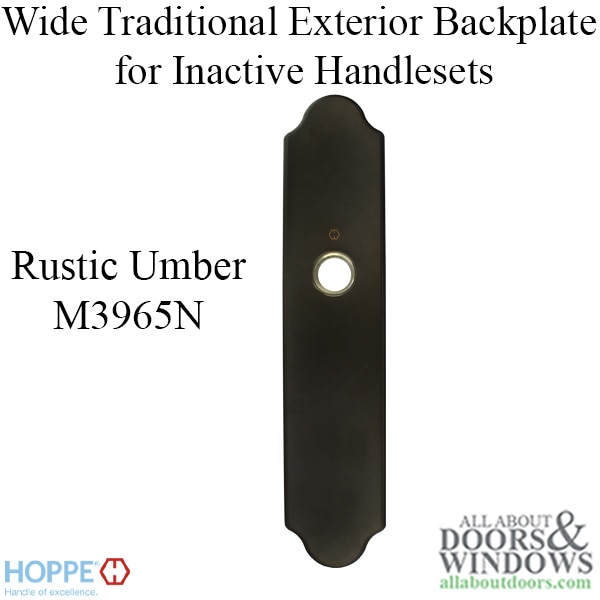

Wide Traditional Exterior Backplate for Inactive Handlesets in Rustic Umber: 2412201
