Interlock 50/92 Optimum Compression Lock

Interlock Assa Abloy 50/92 DL01-6450 Optimum Compression Lock with deadlocking spring latch and deadbolt.
When rods are connected and engaged becomes a 4-point lock

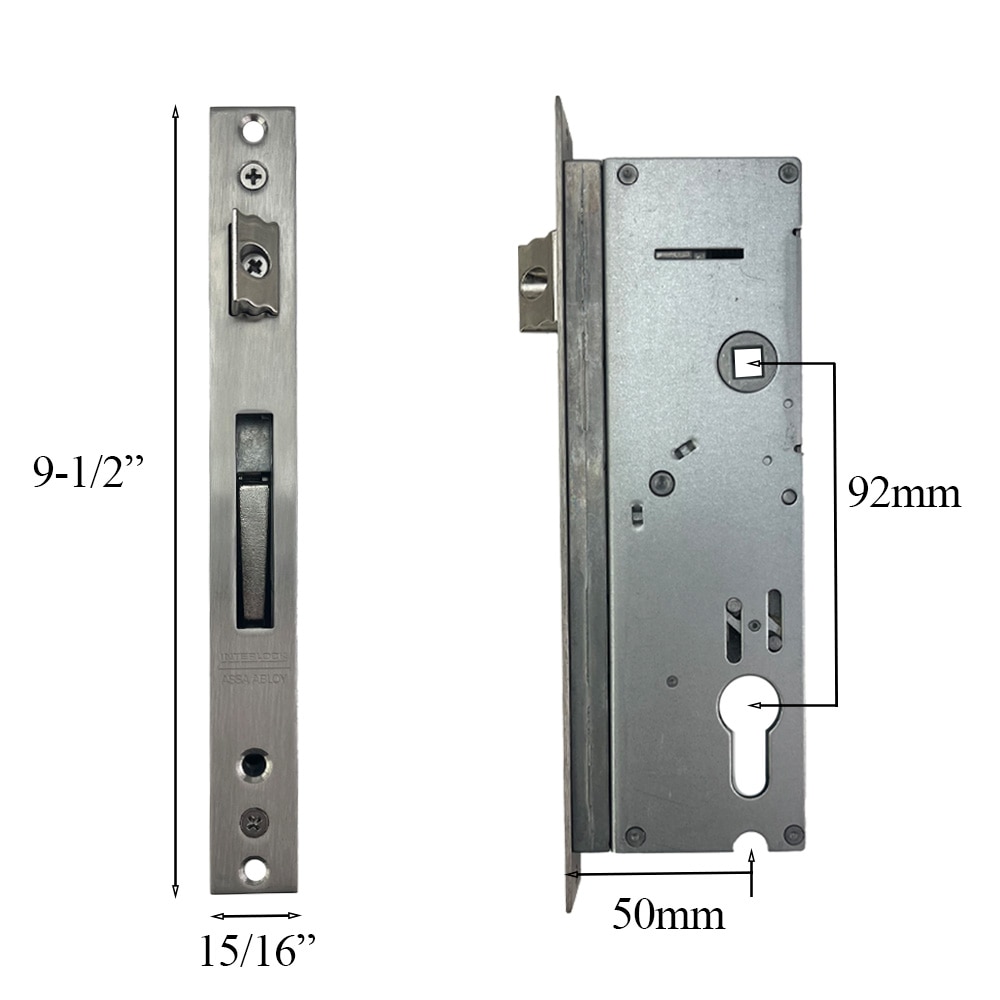

Backset: 2" (50mm)
Deadbolt Throw: 3/4" (20mm)
Handle to Cylinder (center to center): 92mm (3-5/8 inch)
Faceplate Width: 15/16 inch (24mm)
Faceplate Length: 8-7/16" (214mm)
Spindle Hub Diameter: 5/16" (8mm)
Lock Body Depth: 2-9/16" ( 65mm)
Lock Body Length: 7-1/4 " (184mm)

Important Note:
There are other similar locks with different Handle to Cylinder Distance of 3-5/16" (85mm) or 3-5/8" (92mm)
Please check dimensions before purchasing, any questions call customer service for assistance.
