Inactive Handleset 400 Series Multipoint Lock Trim - Oil Rubbed Bronze
Amesbury Inactive hardware for secondary passive door with multipoint lock
This Lock trim replaces Integrity by Marvin Cambridge series, Milgard, and other American version multi-point locks that do not need an inside thumbturn.
Application: Passage type lever to lock shootbolts on Inactive door, no key or thumb turn.
Amesbury 400 Series curved lever with rounded radius top escutcheon plate
Color / Finish: Oil Rubbed Bronze
Base Material: Zinc
Door thickness: 1-3/4 inch

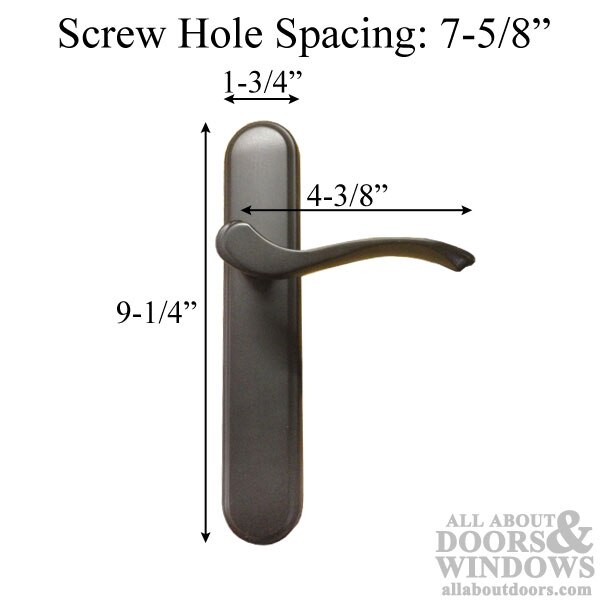

Escutcheon Plate: "B" 1.80" x 9.52"
Escutcheon Plate Screw hole spacing: 7.87 inches
Installation screws: M5 x 58mm
Spindle Diameter: 5/16 inch (8mm) Square
Cylinder to Handle spacing: 3-5/8 inches ( 92mm)
Keyed Cylinder: None
Thumb Turn: None
Handed: Yes, But handles can be removed and reattached.
Levers do not have handle set screws. It uses a snap ring to hold handles to the escutcheon plate.
This handle set offers a spring loaded cassette for added lever action.
Typically Available in 3 Functions:
Active: Key cylinder and inside thumb turn
Inactive / Passive: levers move, no key, no inside thumb turn
Dummy: Fixed / rigid levers, no key, no thumb turns
Single Door = 1 Active Keyed
Double French Door = 1 Active Keyed and 1 Inactive or 1 Dummy
