Hoppe Key Operated Multipoint Lock 1-3/4" Backset, Doors 85.43"-94.49" - Egress, Panic Function
Hoppe Key operated Multipoint Lock, with Panic Function for Emergency Egress, New for 2019
Specifications:
Faceplate Width: 0.94488189 (24mm)
Backset: 1-3/4 inch (45mm)
Handle Height: 40.2 inch ( 1020mm)
Handle Hub / Shaft: 8mm Standard / 9mm Egress
Panel Height: Doors 85.43-94.49 inch ( 2170-2400mm)
Material: Stainless Steel
Standard Function
¥ Rotate the exterior key or interior thumb turn two turns to lock and unlock
the door. The exterior key or interior thumb turn retracts the latch. The
interior lever also retracts the latch.
¥ 8 mm handle shaft

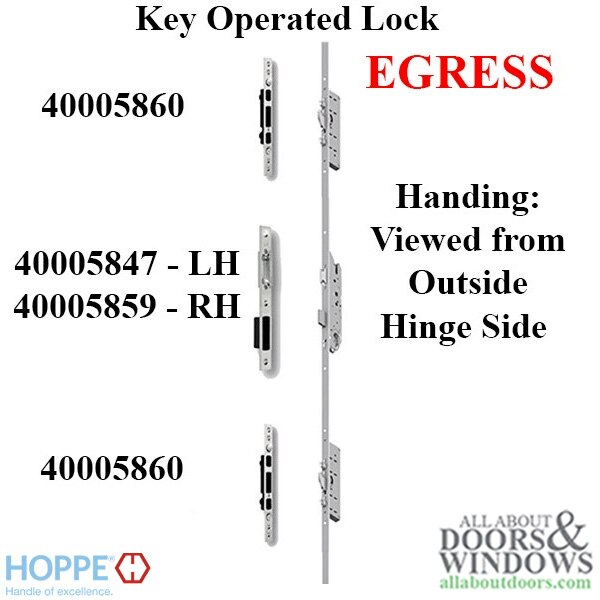

Egress Function
¥ The interior lever retracts the latch and any extended bolts. Rotate the
exterior key or interior thumb turn two turns to lock and unlock the door.
The exterior key or interior thumb turn also retracts the latch.
¥ 9 mm handle shaft
Specifications:
Faceplate Width: 0.94488189 (24mm)
Backset: 1-3/4 inch (45mm)
Handle Height: 40.2 inch ( 1020mm)
Handle Hub / Shaft: 8mm Standard / 9mm Egress
Panel Height: Doors 85.43-94.49 inch ( 2170-2400mm)
Material: Stainless Steel
Standard Function
¥ Rotate the exterior key or interior thumb turn two turns to lock and unlock
the door. The exterior key or interior thumb turn retracts the latch. The
interior lever also retracts the latch.
¥ 8 mm handle shaft
Egress Function
¥ The interior lever retracts the latch and any extended bolts. Rotate the
exterior key or interior thumb turn two turns to lock and unlock the door.
The exterior key or interior thumb turn also retracts the latch.
¥ 9 mm handle shaft
