Hoppe Tilt Turn Handles Luxembourg Silver

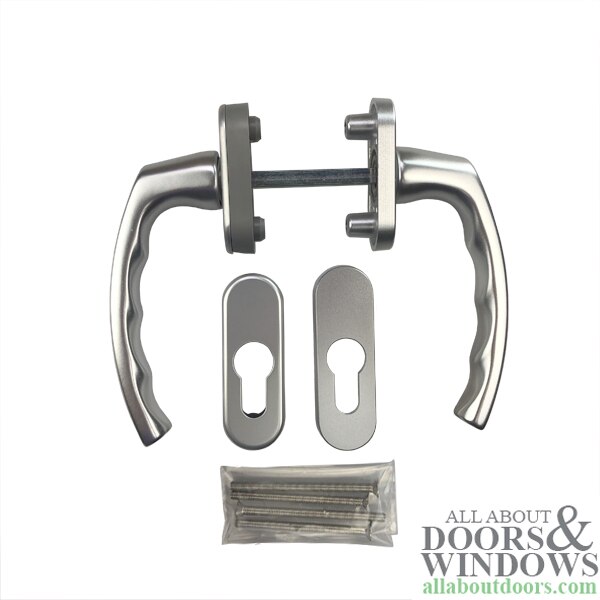

Hoppe Luxembourg Tilt Turn Handle with Cylinder Rosette plates
Screws holes concealed with interior cover, screw holes are easily accessed by gently lifting both ends of cover and twisting.
Brand: HOPPE
Model: Luxembourg
Application: Tilt Turn Windows

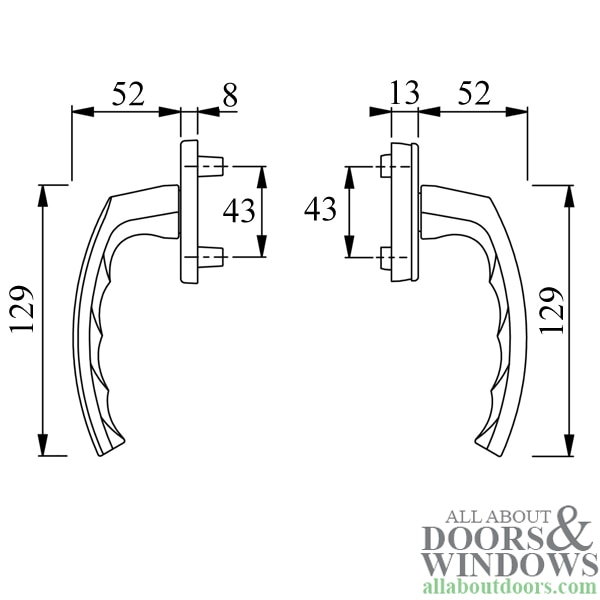

Handle mounting screw holes: 1-11/16 inch (43mm) 1.693
Rossette Mounting screw holes: 2-1/2 inch (63mm) 2.48
Door Thickness: 2-1/4 to 2-31/64 (58-63mm) 2.28 - 2.48
Spindle Diameter: 1/4 inch ( 7mm) 0.2756
Spindle Length: 3-9/16 inch (90.5mm) Solid, attached to outside handle
Screws in package: 4 ( M5 x 65mm & 70mm)
Screw Length: 2-9/16 inch ( 65mm) & 2-3/4 inch (70mm)
Color/ Finish: Aluminum Silver Effect, F1
Markings: HOPPE Logo
Rosette / Cylinder Escutcheon:
Screw Hole Spacing: 2-1/2 inch (63mm) 2.48
Housing Thickness: 5/16 inch (8mm) 0.315
Outside Housing Width: 1-9/64 (29mm) 1.142
Outside Housing Length: 3-5/16 (85mm) 3.346
Inside Housing Width: 1-7/64 (28mm) 1.1023
Inside Housing Length: 3-5/32 inch (80mm) 3.15
