Heavy Duty Mortise lock, Escutcheon Plate, Keyed Entry

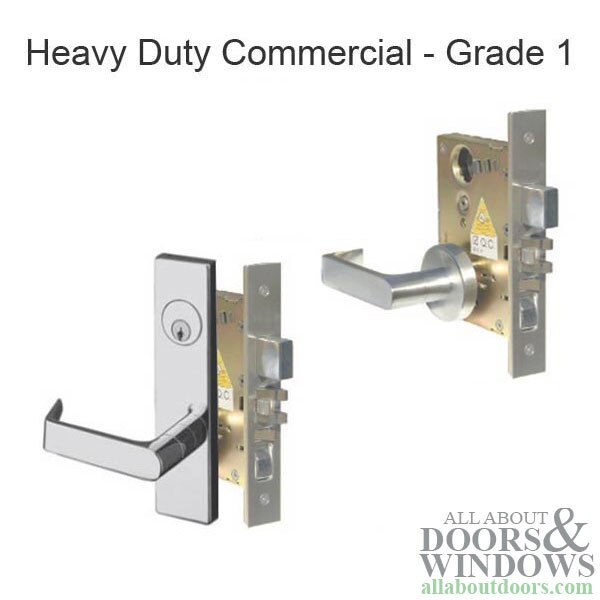

Heavy Duty Mortise lock with Rectangular Escutcheon Plate
The DXML mortise lockset is designed for all heavy duty commercial and industrial applications. This series meets ADA handicap requirements and meets a 3 hour fire listing.
Commonly used in Hospitals, Hotels, Churches and Schools
Specifications DL-DXML
Heavy duty commercial; Grade 1
Door Thickness: 1 3/4”
Backset: 2 3/4″
Face plate: 1-1/4" x 8"
Escutcheon plate: 1-15/16" x 8-1/16"
UL Rated #R15846, 3 Hour fire Listed Latch
1inch Throw Bolt
1 1/8" Mortise Cylinder
SC6 Schlage “C” 6 pin keyway
Barrier free levers and returns within 1/2″ from door face
Handed LH or RH, Field Reversible
Dead or spring latch Depending on function
Finish / Color: US26D, Brushed Chrome
Trim Specifications
Round Rose Leverset; solid brass
Rectangular escutcheon Handleset; solid brass
