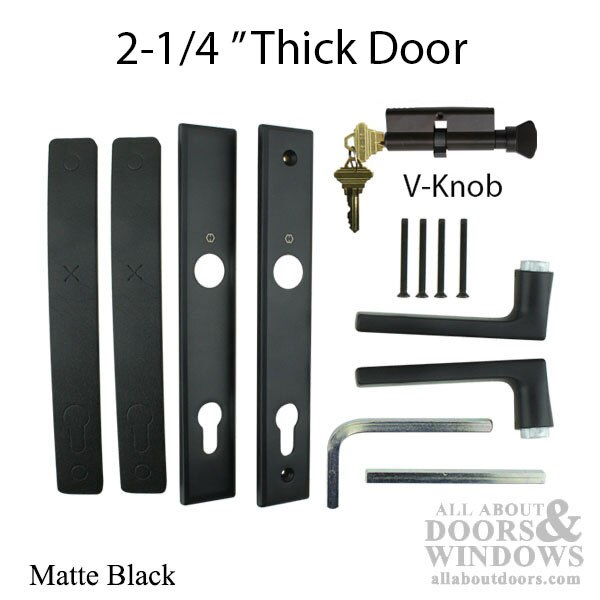

HOPPE Dallas Multipoint Lock Handle Set Contemporary 2.25 Inch Door Active 40/40 Cylinder Matte Black

HOPPE Dallas Multipoint Lock Handle Set Contemporary 2.25 Inch Door Active 40/40 Cylinder Matte Black

Dallas Quick-Fit lever handles do not have set-screw, the lever is held on with spring
tension. There is a special tool that comes with the Dallas handle set to uninstall handles.
There is a hole in the shaft of the lever handle to use the tool, but not for set screw. Dallas
handle set uses a different spindle. The Dallas Series features straight, modern lines providing
contemporary aesthetic.

Function: Active Keyed
Style: Contemporary / Modern
Lever: M1643
Back Plate: 2161N

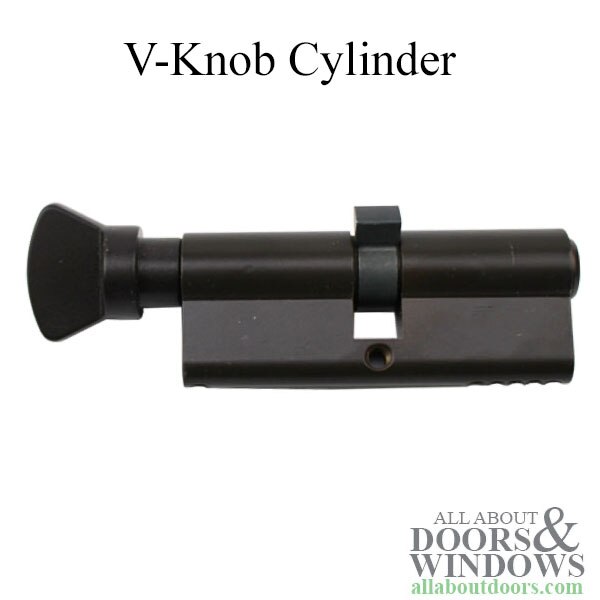

Cylinder: 40.5/40.5 mm cylinder with V-Knob
Keyway: Schlage SC1 5 pin
Material: Brass
Door Thickness: Fits 2-1/4 or 2-3/8 inch thick doors
Spindle: 5/16 (8mm) x 5-1/2 (40mm)
Handle to cylinder PZ: 3-5/8 inch (92mm)
Color/ Finish: Matte Black F9714M

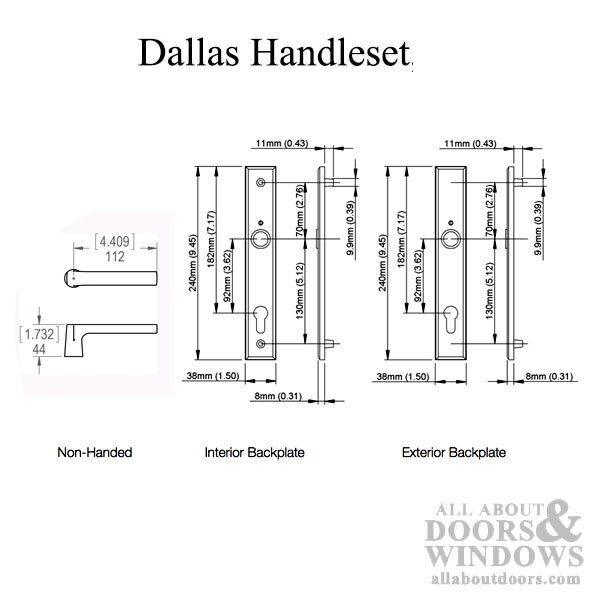

Measurements:
Escutcheon Plate Length: 9-7/16 inch
Escutcheon Plate Width: 1-1/2 inch
Screw Hole Centers: 8-5/8 inch
Cylinder center to Handle center: 3-5/8 inch

Available Colors: Polished Brass, Satin Nickel, Matte Black, Dark Bronze Metallic
Available Functions: Active with keyed Cylinder, Inactive with 1/2 Cylinder, Dummy Fixed Pair
