HLS-ONE 5-point Lock KIT, ACTIVE SYSTEM w/60MM backset, choose door thickness
HOPPE HLS-ONE-HLS9000 5-point Manual Tongue System for 7' (84\'') high active panels.
Includes 60mm backset gear, middle extension, top extension, stainless steel strikes and screws.
When Top, Middle and Bottom are connected, fits doors from 82.52 to 86.46 inches tall

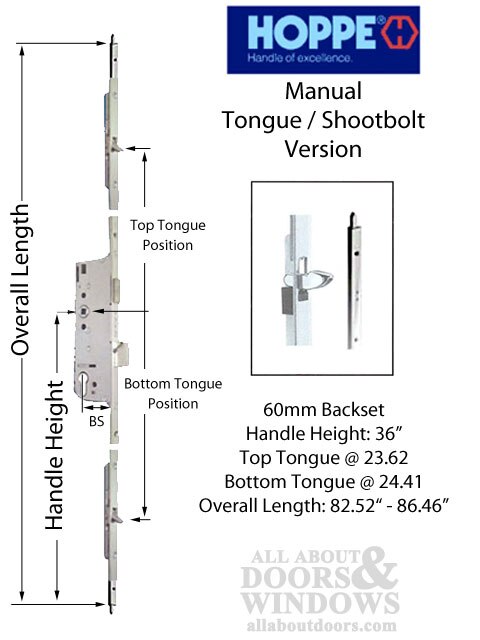

Lock Measurements:
Faceplate Width: 5/8 inch (16mm)
Backset Set: 2-3/8 inch (60mm)
Handle Height: 36 inches (914mm)
Top Tongue Position: 23.62 inches (600mm)
Bottom Tongue Position: 24.41 (620mm)
Shootbolts: located at the extreme top and bottom

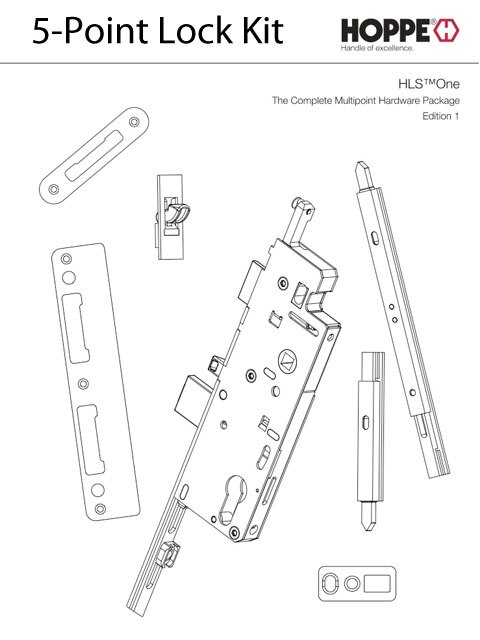

Kit includes:
1 - Top Shootbolt Extension
1 - Middle Extension, Tongue Position @ 23.62
1 - Bottom Gear, Tongue position @ 24.41
1 - Latch & Deadbolt Strike plate (Radius - Curve Lip) - Stainless Steel
17 - Stainless Steel Screws 1 3/8''
10 - Screws 3/4'' (10) - Stainless Steel
2 - Stainless Steel Tongue Strike plates with Radius corners
2 - Stainless Steel Shootbolt Strikes
4 - Dust caps for Latch & Deadbolt with Tongues Strikes - Black
1 - Instruction booklet
