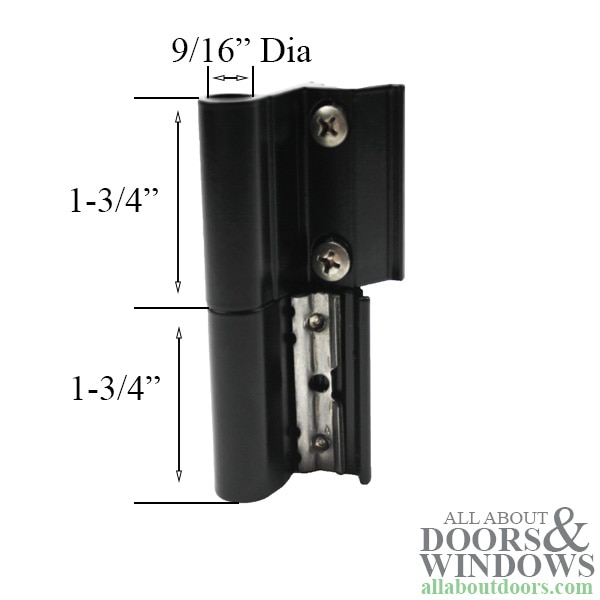

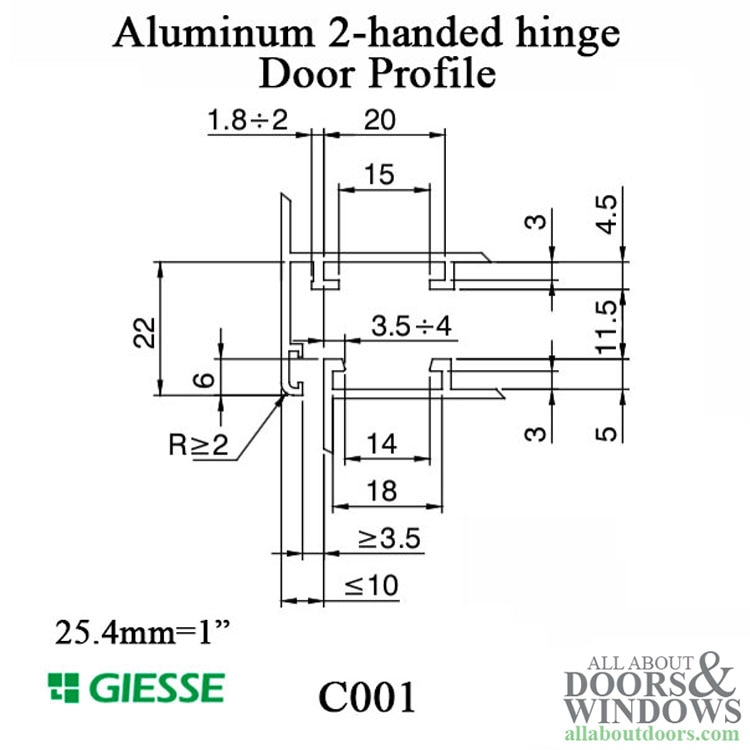

Giesse Terrace door Flash XXL clamp hinge for C001 Euro groove

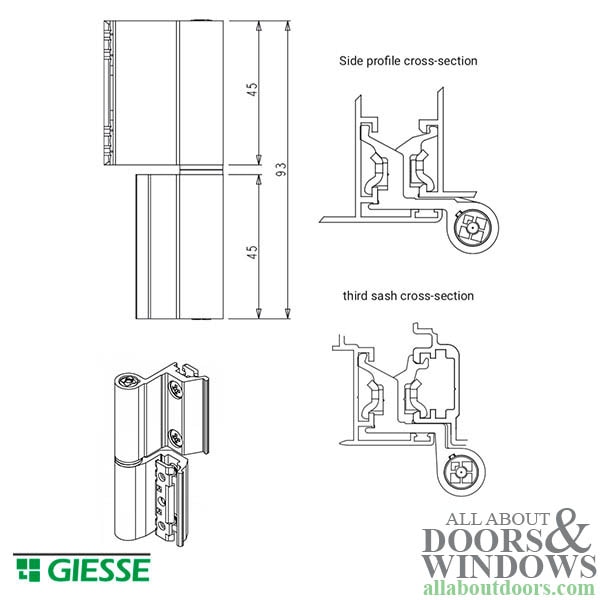

Giesse Flash Base Clamp Hinge 9005, Two-handed hinge for aluminum casement windows and doors with central gasket seal
Technical Features:
Supplied preassembled to enable fast installation and faultless positioning of the hinge on already assembled fixtures.
The special shape of fixing plate fitted to the sash (Giesse patent RAPID sys- tem) guarantees the firmest possible attachment of the hinge to the profile. The FLASH BASE hinge is fitted extremely quickly to the sash and frame, even when the fixture has already been assembled.
The particular geometry of the hinge and of the plate enables swift and simple application to the already assembled fixture, and faultless positioning of the hinge when fixing the screws.
Material:
Extruded Aluminum, stainless steel fixing plates, pins and screws, Polyamide bushing
Capacities:
With 2 FLASH BASE hinges: 75 kg
With 3 FLASH BASE hinges: 85 kg
assuming fixtures of 2000 mm height and 1000 mm width.
