Georgian Lever, 1/4 Inch Deadbolt Offset, Storm Door Hardware

Part Number: 302003
Price:$82.00 to $114.00
Georgian Storm door Lever Handle with keyed deadbolt, 2 keys.
Replaces Standard hardware - three hole pattern with 1-3/4 inch screw hole spacing
Door Thickness: 3/4, 1, 1-1/4 inch thick door
Deadbolt Offset: 1/4 inch from base
NOTE: DEADBOLT OFFSET HEIGHT VARIES - THERE ARE 3 HEIGHTS, 1/4, 1/2, & 3/4 inch
Screw hole Spacing: 1-3/4 inch; deadbolt and lever handle.
Standard Lock Spacing: 7-1/4 inch from top screw on deadbolt to bottom screw on lever handle - will fit other hole spacing.
Minimum Spacing 5-1/4 inch from top screw on deadbolt to bottom screw on lever handle ( see additional images)
Material: Zinc base metal, Same finish on inside and out.

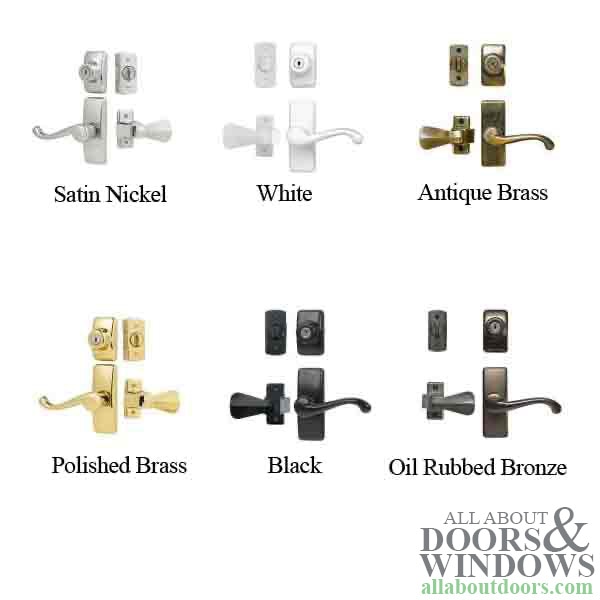

Colors / Finish: White, Black, Satin Nickel, Oil Rubbed Bronze

We do not stock the deadbolt with 1/2 inch offset
302003: 1/4 inch offset - Fit doors from 3/4 to 1-1/4 inch thick
301053: 3/4 inch Offset - Fit doors from 3/4 to 1-1/4 inch thick

Guide: How to Install Georgian Deadlock and Latch
