G-U Straight 11" Arm Rear Mounted, Vinyl window Operator, RH - White

Part Number: G-U00R-11
Price: $69.95

This item is Discontinued and is no longer available, limited to existing inventory

G-U straight arm operator with plastic housing was sold by Home Depot and others.

Application: Vinyl Casement windows
Arm Length: 9 inch
Mounting Type: Rear
Mounting Screw holes: 3-1/8 inch
Round Nylon Button: 9/16 diameter, 3/16" thick
Handed: Yes - As hand shown
Priced and sold each.

Note;
Replacement Operator - Unknown at this time; Will require some Modifications.
The frame was routed out for the operator to mount into a 1/2 x 3-11/16 hole
May be able to replace with Truth Rear mount 9-1/2 arm # 55122

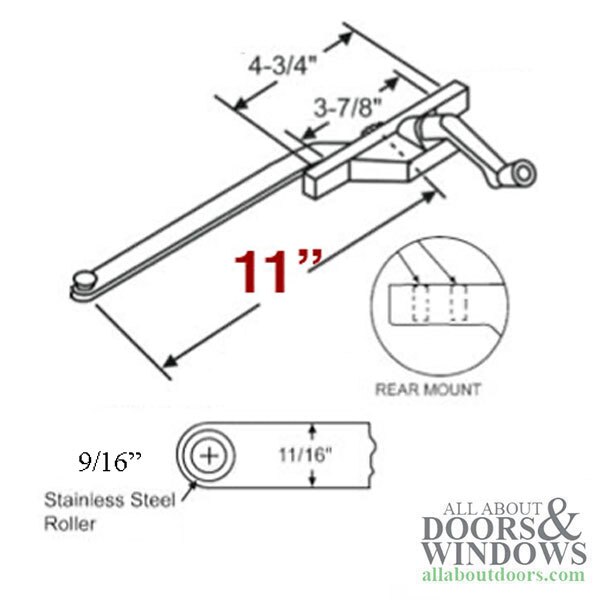

The # 55123 Operator is rear surface mount and has screw holes at 3-7/8 & 4-3/4
May require a back plate for additional support.

This product is similar to or the same as the following part numbers in these brands:
Strybuc Industries: LHW
