Slide-Fold Hardware for Wood Windows and Doors

Specifications:

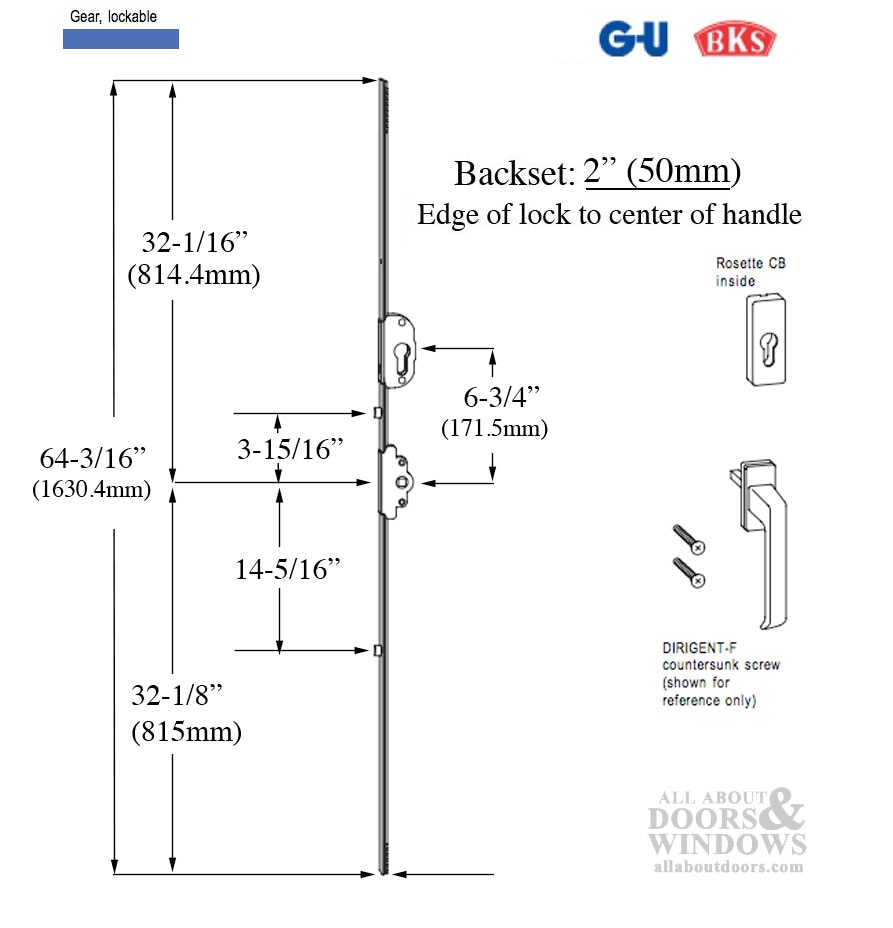

• Lockable gear with 50mm backset
• Attaches to corner transmission at top and bottom
• Faceplate Width: 16mm

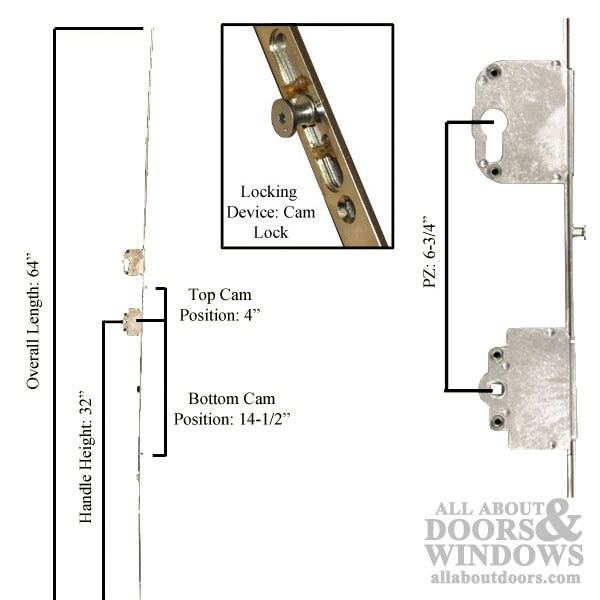

• Overall length: 64"
• Handle Height: 32"
• Cylinder-height (bottom to cylinder): 38-¾"
• Bottom cam position (handle to cam): 14-½"
• Top cam position: 4"
• PZ: 6-3/4"

  May be used on some sidelites as well.
