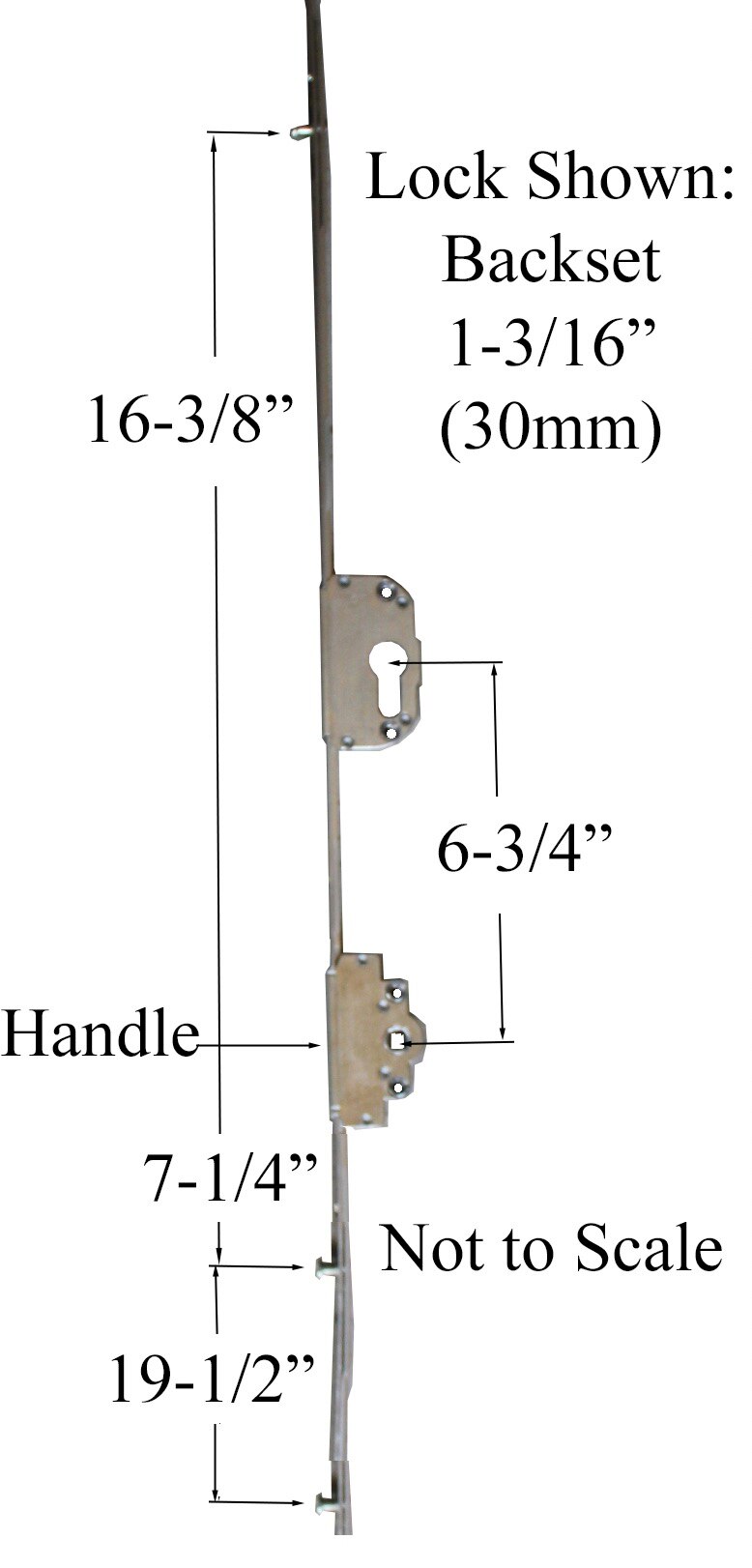

G-U Hinged Door Tilt & Turn Lockable Drive Gear - Choose Backset
Application: Vinyl, Wood and Aluminum Doors
Lever Rotation: 90 degree - Horizontal Open / Vertical Locked
Faceplate Width: 5/8" (16mm)
Markings above profile cylinder: 6-25204-30
Faceplate Markings Below Lever : FFH 1851-2100
Door height: 73-1/2 inch
Center section Length: 67-3/8
Euro Cylinder: 75mm inside 35/40mm outside
Door thickness: 2-3/8 inch (60mm)
Lever Rotation: 90 degree - Horizontal Open / Vertical Locked
Faceplate Width: 5/8" (16mm)
Markings above profile cylinder: 6-25204-30
Faceplate Markings Below Lever : FFH 1851-2100
Door height: 73-1/2 inch
Center section Length: 67-3/8
Euro Cylinder: 75mm inside 35/40mm outside
Door thickness: 2-3/8 inch (60mm)
25.4mm = 1"
30mm = 1-3/16"
35mm = 1-3/8"
40mm = 1-9/16"
45mm = 1-3/4"
50mm = 2"
55mm = 2-3/16 "
30mm = 1-3/16"
35mm = 1-3/8"
40mm = 1-9/16"
45mm = 1-3/4"
50mm = 2"
55mm = 2-3/16 "
