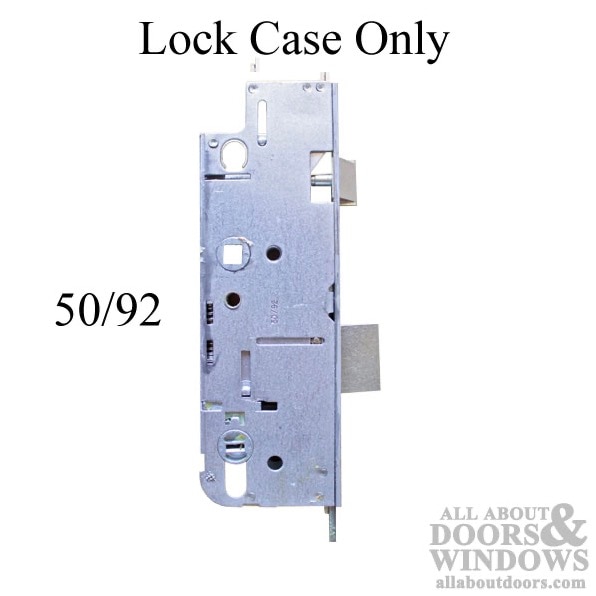

G-U Style Active Lock Case - 50mm Backset

Active 50mm Backset Multipoint lock Case Only. This is an after market G-U replacement for Superior Door and others with the old style 2 inch (50mm) backset lock.

It will NOT replace the new style - see additional images

Application: Active Door, 3 point Lock
Faceplate Width: None - lock is 12.7mm (0.5") wide
Cylinder Type: American Version
Backset: 2 inch (50mm)
Handle Height: 35 inch (889mm)
Faceplate Color: Yellow Dichromate ( YDI)
Markings on some locks G.2C250

Note: The lock case should replace any old style G-U Multipoint locks with 2 inch (50mm) backset.
* It will NOT replace the new style - see additional images.

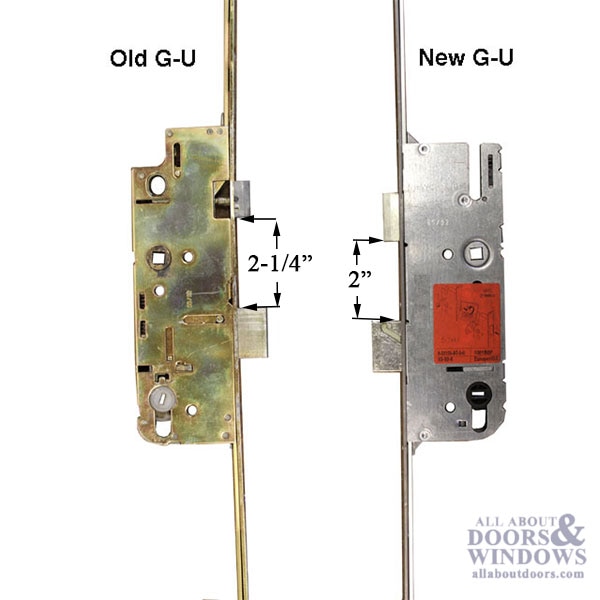

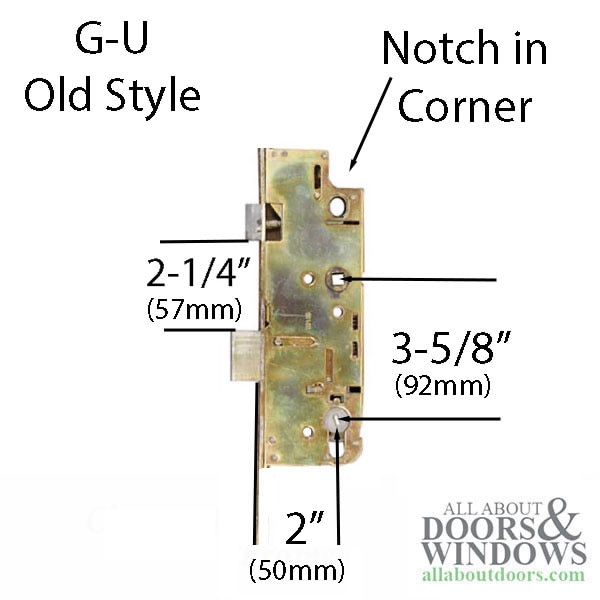

* The Old style lock had 2-1/4" between the latch and deadbolt.
* The screw holes do not align with new style lock
* There are NO parts inside the lock that work with new style
* Reuse your existing screws as they are not included.
