Fuhr Tongue Version Lock, 1-3/8 backset, 1/2 Deadbolt - See Replacement Option
Replace with 4990221-KIT
Replacement includes bottom gear, top extension and stainless steel screws.
Fuhr 3-point multipoint lock; Tongue Version
Please review all images for details.
Manual Locking Version - Lift handle to engage Tongues

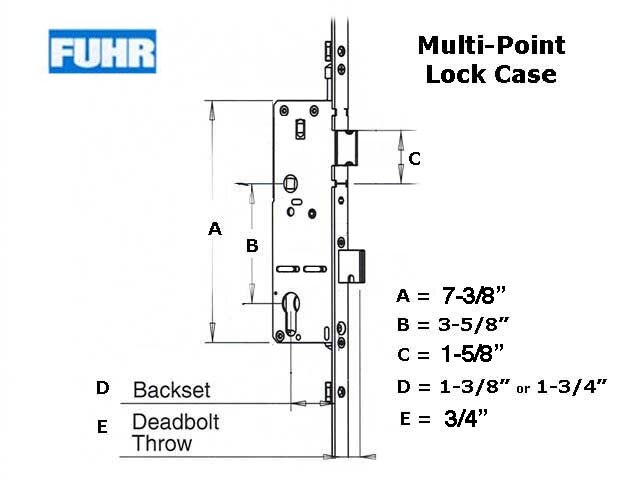

Backset: 1-3/8 inches (35mm)
Deadbolt Throw 1/2 inch (14mm)
Handle to Cylinder spacing 3-5/8 inches (92mm)
Handle Height 36 inches (914mm)
Bottom Tongue position 29.65 inches (753mm)
Top Tongue position 29.25 inches ( 743mm)
Overall Length fits Doors 71.06 to 78.74 inches tall.
Note: this Multi-Point lock can be trimmed for different height doors
Used by Semco and other door companies
Fuhr Replacement Option: 4990221-KIT
This is a replacement made by HOPPE
Includes gearbox, upper and lower tongue locks and screws.
Reuse your trim, handles and keyed cylinder.
Replacement includes bottom gear, top extension and stainless steel screws.
Fuhr 3-point multipoint lock; Tongue Version
Please review all images for details.
Manual Locking Version - Lift handle to engage Tongues
Backset: 1-3/8 inches (35mm)
Deadbolt Throw 1/2 inch (14mm)
Handle to Cylinder spacing 3-5/8 inches (92mm)
Handle Height 36 inches (914mm)
Bottom Tongue position 29.65 inches (753mm)
Top Tongue position 29.25 inches ( 743mm)
Overall Length fits Doors 71.06 to 78.74 inches tall.
Note: this Multi-Point lock can be trimmed for different height doors
Used by Semco and other door companies
Fuhr Replacement Option: 4990221-KIT
This is a replacement made by HOPPE
Includes gearbox, upper and lower tongue locks and screws.
Reuse your trim, handles and keyed cylinder.
Article: How to Change the Handing on a Fuhr Lock (Change direction of slope of latch)
