Forgings 10 Inch Non-Keyed Handle Hardware for Passive or Dummy Hinged Doors
Outside - NO Key
Inside - NO Thumbturn
Can be used as Passive handles that move or Dummy with Fixed handles
This Handle Set is an excellent high quality replacement for Marvin Active Keyed Handle Hardware.
While the original Marvin Hardware is larger than the Replacement, the installation holes are the same.
This Handle Set is used by Ashland, Milgard, Marvin, Jeldwen, Caradco, Cantera, Delta, Pozzi, PGT and others.
A Passive Door does not have an Interior Thumbturn and when the Active Door Locks into the Passive Door it prevents the Handles from moving.

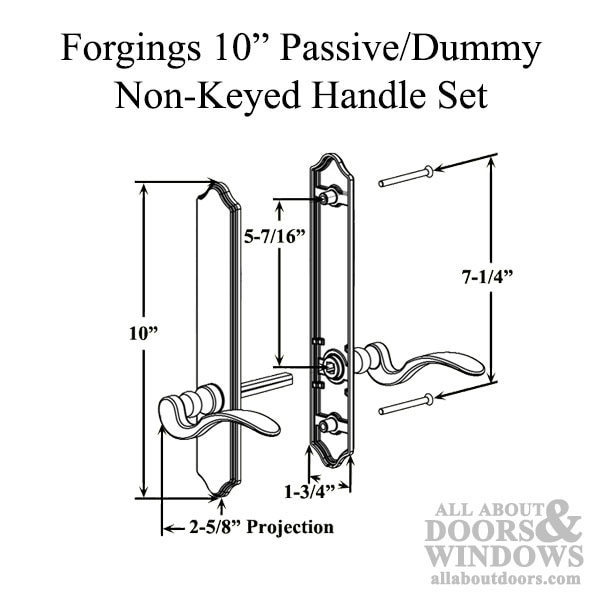

Plate Height: 10 Inch
Plate Width: 1-3/4 Inch
Hole Center: 7-1/4 Inch
Function: Passive or Dummy, Non-Keyed with No Thumbturn
(Note: Passive is converted to dummy with fixing plates)
Door Configuration: Exterior Non-Keyed, Interior No Thumbturn
Door Thickness: Standard 1-3/4 Inch - Hardware for Thicker Doors is Available
Handing: Non-Handed fits Left and Right Handed Doors
Escutcheon Plate Style: Round Top
Handle Style: Transitional Curved Levers
Finishes: (Some prices may vary and will require 2-4 weeks to receive.)
Oil Rubbed Bronze
Distressed Oil Rubbed Bronze

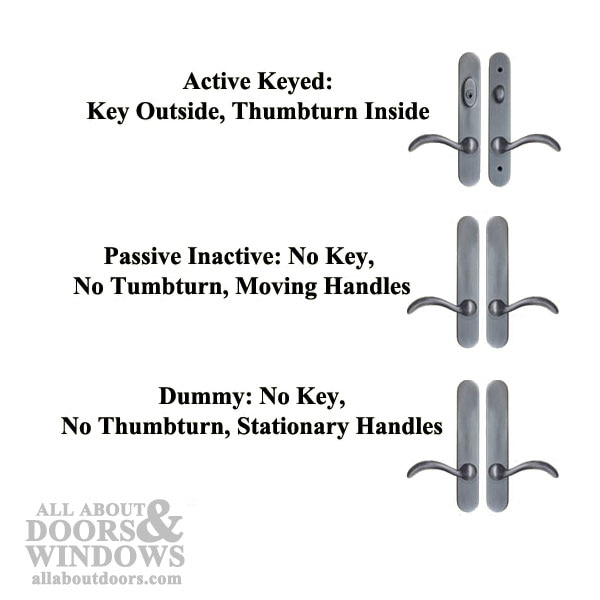

Available Functions: (Prices may vary.)
Active Keyed (Key Outside, Thumbturn Inside)395018
- Active Non-Keyed (No Key Outside, Thumbturn Inside)395019
- Passive Inactive (No Key, No Thumbturn but Handles move)395019
- Dummy (Fixed Version, No Thumbturn and Handles do not move)
Be sure to check out Related Parts for all the other functions.

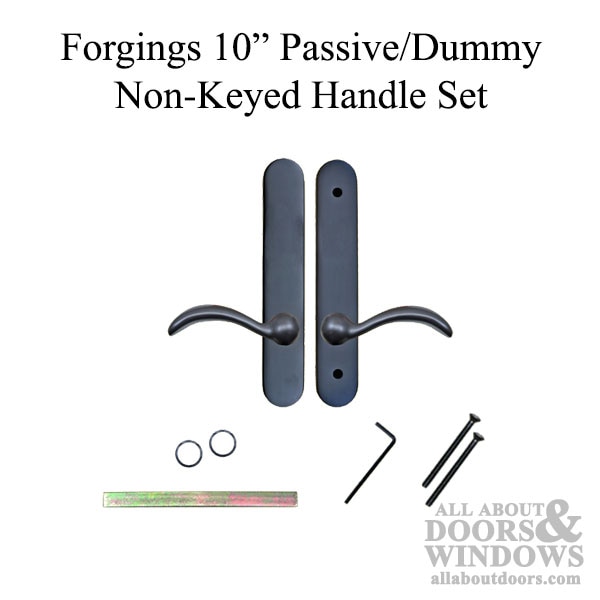

Contents: 1 Inside Plate, 1 Outside Plate, 2 Handles, 1 Spindle, 1 Hex Wrench, Installation Screws
Priced and Sold as Set.
