Fixing Plate - Convert Passive to Dummy

Part Number: 395066
Price: $4.50
Fixing Plate - Convert Passive levers to Dummy fixed levers on Ashland Hardware
Used by Marvin, Milgard and others
Plate fits into the escutcheon plate and holds the levers rigid

Plate Size: 1-9/32 x 1-9/16 inch Square
Spindle Hole Diameter: 5/16 inch Square
Markings: C-5200, 0-5201

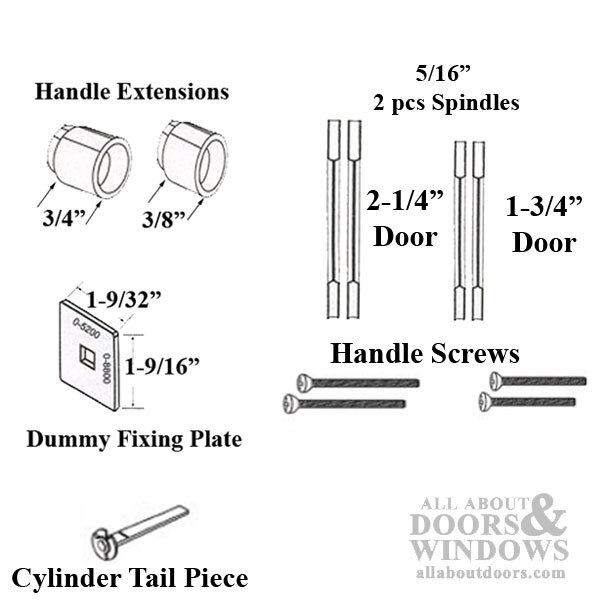

Related Handleset Hardware & Parts:
395066- Fixing Plate, O-8800 / O-5200, 1-9/16 x 1-9/32
395067 - Fixing Plate, C-5200 / 0-5201, 1-7/16 x 1-5/16
395020 - Handle Set Screw
395022 - 2 piece Spindle, 1-3/4\" door
395023 - 2 piece Spindle, 2-1/4\" door
395024 - Plate Screw, 1-3/4\" Door
395025 - Plate Screw, 2-1/4\" Door
395026 - Handle Bushing, Painted Trim
395027 - Handle Bushing, Plated Trim
395028 - Handle Extension 3/4 length
395029 - Handle Extension 3/8 length
This product is similar to or the same as the following part numbers in these brands:
Strybuc Industries: 16-482
