Ferco 31/31 PZ-Cylinder w/ Key and Thumbturn - Satin Nickel

Part Number: 6-U7301-62-0-11
Price: $48.87

G-U / Ferco  40/40 Profile cylinder for 2-1/4" (57mm) thick doors with multipoint locks

This cylinder is for doors with the Multipoint lock centered in Door

Used with the Key operated and other applications requiring a Euro Profile cylinder.

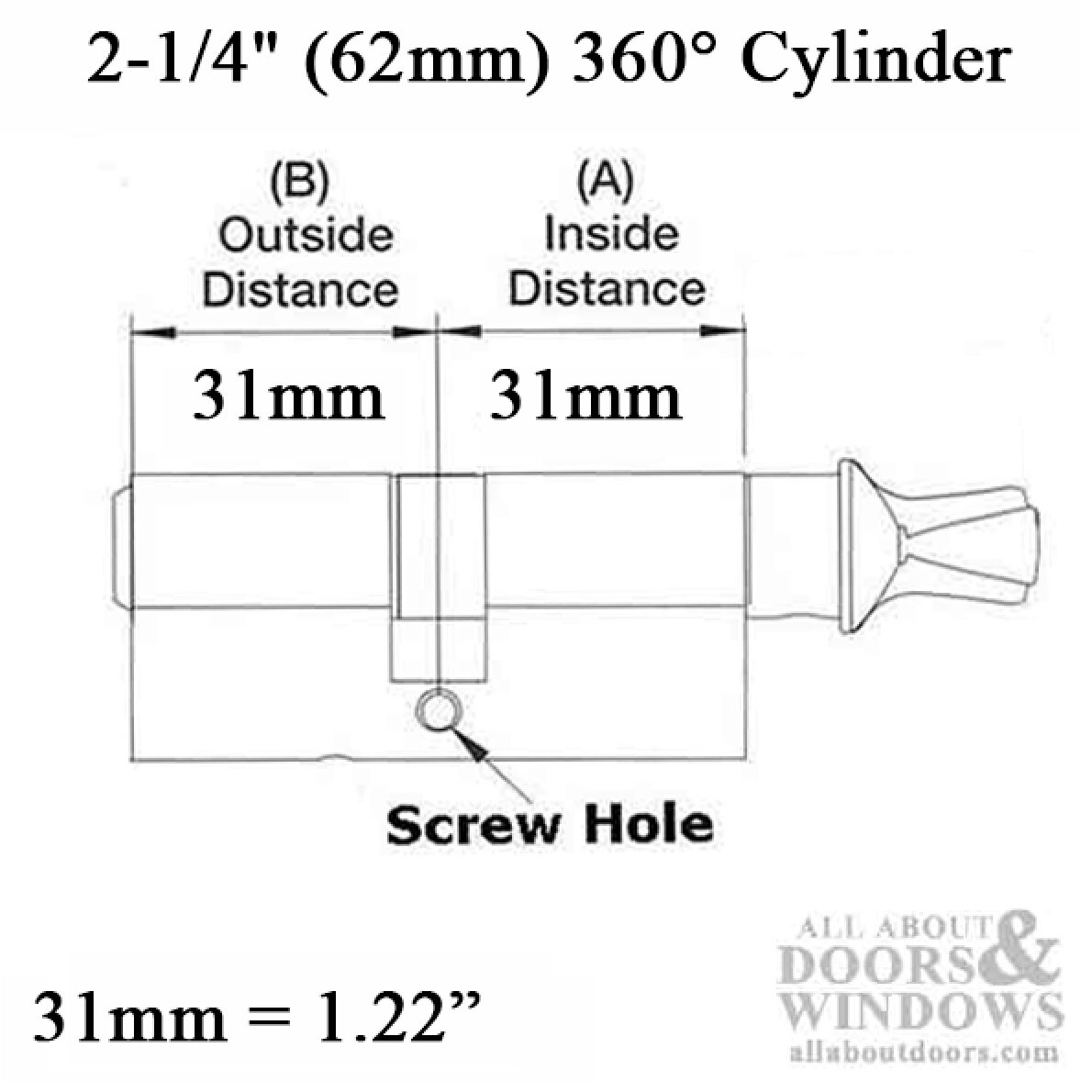

Call Size: 31/31

Overall Cylinder length: 2-7/16 inch (62mm) 2.44

Measurements: 1-1/4 inch x 1-1/4  inch ( 31mm x 31mm ) 1.22 x 1.22

Thumbturn: Crescent Shape

Finish:  Satin Nickel


Note on Cylinder Length:

To determine the length of profile cylinder needed for your door

1. Measure door thickness

2. Measure thickness of Exterior Trim Plate

3. Measure thickness of Interior Trim Plate

4. Add together the dimensions, this is the minimum length to be flush with trim plates

A longer cylinder is better that being  short.
