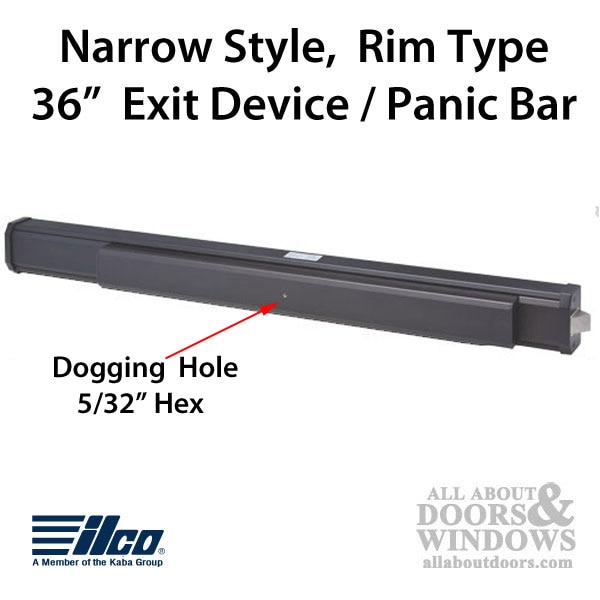

Exit Device / Panic Bar, Narrow Style Rim Type 36 - Choose Color
Discontinued. Replace with 380326
Narrow stile panic bar/exit device for full view glass doors or mounting when space is limited.
can also be installed on wood and hollow metal doors.
Designed for fullview Storefront commercial doors, but can be used on all types of doors with a minimum 2 inch stile.
Narrow style rim type exit devices are suitable for all aluminum, hollow metal, wood or fiberglass doors.
Operation: slight pressure on any point on the bar at all times.
Can be dogged to remain unlocked during business hours
Available finishes: AL - Aluminum; DU - Duranodic Bronze
available widths : 36 or 48 inch, can be cut down for smaller doors
SPECIFICATIONS:
Stile Width: 2 inch minimum
Material: Push Bar of steel material, spring of stainless steel
Latch Bolts: 3/4” throw, stainless steel
Dead Latch Bolts: 5/8”, stainless steel
Finish: Powdercoat
Strike: For 5/8” stop, plus shim for 1/2” stop
Projection: 2-1/2” maximum, 1-7/8” depressed
Reversible: Non-handed, Reversible for all functions and trims
For Doors: 1-3/4” thick standard, specify if other than 1-3/4” thick
Door Width: For door 2’6” to 3’ wide use standard 3’ wide standard;
Door Width: For door 3’1” to 4’ wide use extended 4’ wide;
Mounting Height: 40-5/16” from centerline (CL) to finished floor recommended
Check your local building codes for actual height requirements.
Dogging: 1/4 turn, hex key dogging
Priced and sold in Package with installation screws, does not include outside pulls or keyed cylinder.

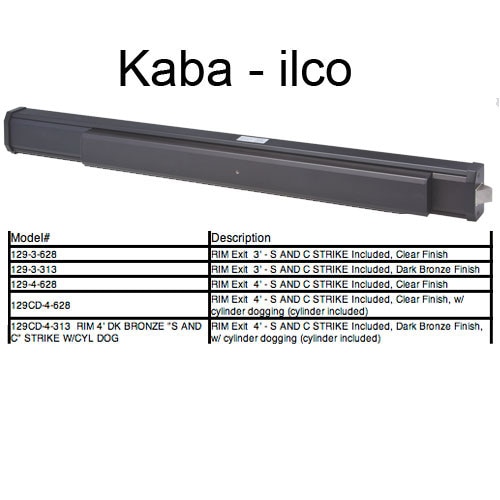

KABA ILCO TECHNICAL INFO:
The Ilco Rim Exit Devices feature a ¾” (19 mm) throw latch bolt, non-handed. Surface mounted “C” (Standard) and “S” (for blade stop) strikes are included with each device.
The 129 Series pairs with the Kaba Access Control E-Plex® 3000, 3200, 3600, 3700 Series for narrow stile doors.
Low profile push bar projects less than 3” (76.2 mm ) from face of door
Coated metal end caps
Two stock lengths: 36” (914.4 mm) and 48” (1219.2 mm)
The 36 inch door is field sizeable to 28” (711.2 mm) in width
Easy access dogging system, optional cylinder dogging
Meets ANSI Grade 1 requirements, UL Listed Life Safety
Available with Electronic Latch Retraction (ELR)
