Evolutions 10" Curve Top Non-Keyed Handle Hardware for Passive Hinged Door

Part Number: 395013
Price:$175.00 to $195.00
Evolutions 10 Inch Non-Handed Passive Non-Keyed Handle Hardware for Passive Hinged Door.
This Handle Set is an excellent high quality replacement for Marvin Active Keyed Handle Hardware.
While the original Marvin Hardware is larger than the Replacement, the installation holes are the same.
This Handle Set is used by Ashland, Milgard, Marvin, Jeldwen, Caradco, Cantera, Delta, Pozzi, PGT and others.

A Passive Door does not have an Interior Thumbturn and when the Active Door Locks into the Passive Door it prevents the Handles from moving.

These handlesets are NON-STOCK items and will take 4-6 weeks to order in once you place your order.

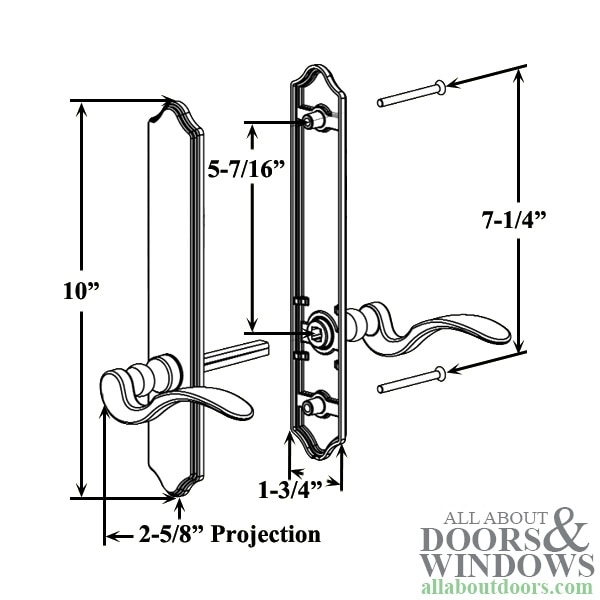

Plate Height: 10 Inch
Plate Width: 1-3/4 Inch
Hole Center: 7-1/4 Inch
Function: Passive Non-Keyed No Thumbturn
Door Thickness: Standard 1-3/4 Inch - Hardware for Thicker Doors is Available
Handing: Non-Handed fits Left and Right Handed Doors
Cylinder: None
Keyway: None
Plate Style: Round Top
Handle Style: Modern Straight Style Levers
Finish: Satin Nickel

Finishes:
Chrome
Brushed/Satin Chrome
Satin Nickel (Pewter)
Black
White

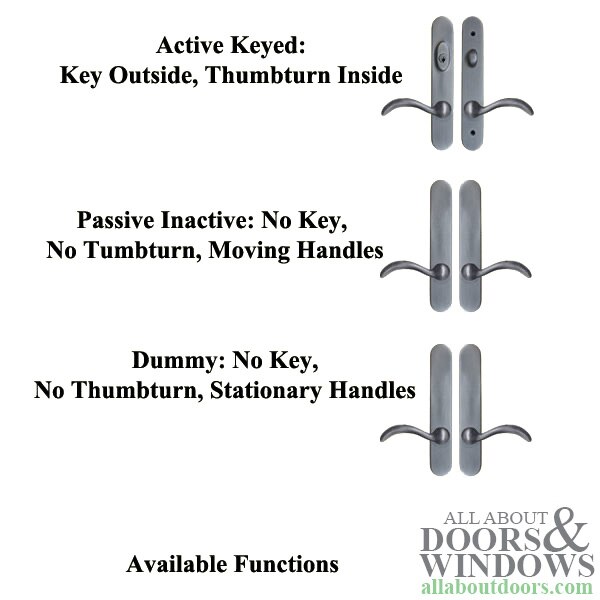

Available Functions: 3 (Prices may vary.)
Active Keyed (Key Outside, Thumbturn Inside)
Passive Inactive (No Key, No Thumbturn but Handles move)
Dummy (Fixed Version, No Thumbturn and Handles do not move)

Be sure to check out Related Parts for all the other functions.

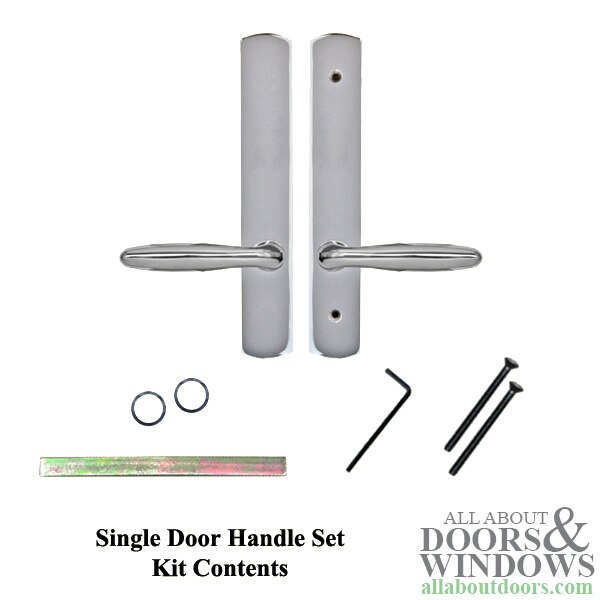

Contents: 1 Inside Plate, 1 Outside Plate, 2 Handles, 1 Spindle, 1 Hex Wrench, Installation Screws

Priced and Sold as Set.
