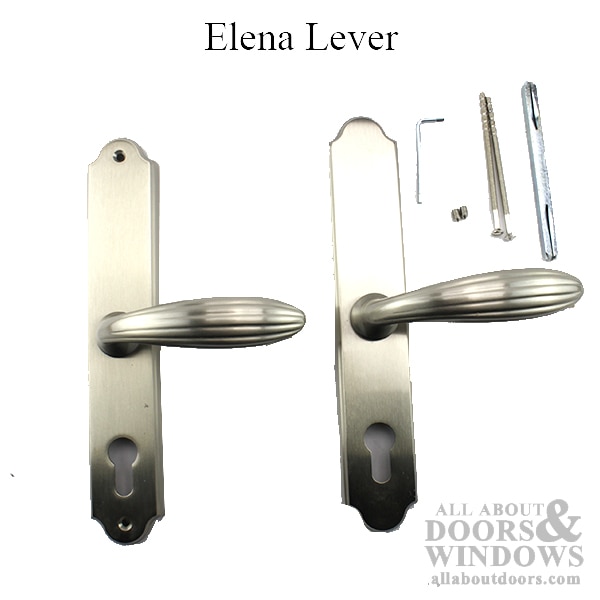

Elena Lever, Lara 68mm Backplate, Patio/ Inactive Handleset - Satin Nickel
Mariani Heavy Duty Solid Brass levers with Spring assist cartridge.
Function: Patio trim, Locking, non Keyed
Cylinder Type: Euro

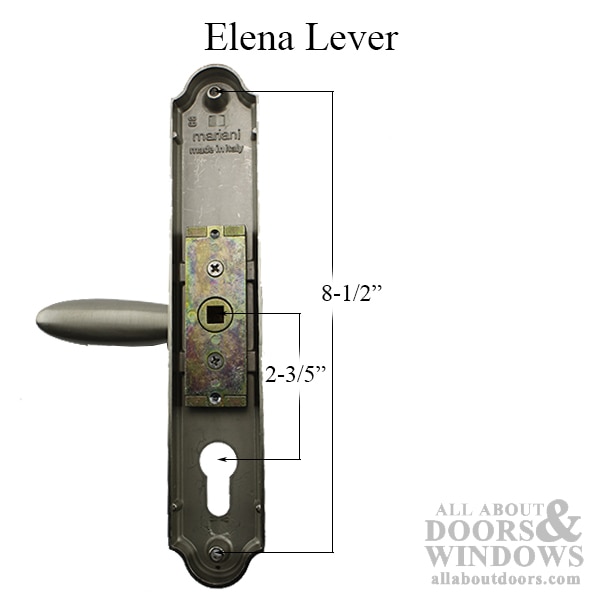

Cylinder - Handle PZ: 2.67 inches ( 68mm)
Escutcheon Plate Width: 1-3/4" (45mm)
Escutcheon Plate Length: 9-3/4" (247mm)
Spindle Diameter: 5/16 inch (8mm)
Color / Finish: Satin Nickel, US15
Country of origin: Italy
Cylinder Not included: 1/2 cylinder # 35/10 for 1-3/4" Door
To Determine Cylinder Length:
Take door thickness and plate thickness.
The overall cylinder length will be the same or longer.
IE: Door 1-3/4" + 1/2" Inside Plate + 1/2" Outside plate = 2-3/4" ( 70mm ) or 35/35 length
This assumes the lock is in the center of door and not offset
LIMITED TO EXISTING INVENTORY
