Elegance 10" Arch Keyed Active Hardware - Choose Color

Part Number: 395004
Price:$134.89 to $265.00
True Elegance 10 inch active keyed handle hardware for hinged doors.
This handle set can be used by Ashland, Milgard, Marvin, Jeldwen, Caradco, Cantera, Delta, Pozzi, PGT and others.
If being used for Marvin or other brands to replace existing trim, check to be sure it will cover any marks remaining from previous hardware.
While the original Marvin hardware is larger than this replacement, the installation holes are the same.
If replacing existing Marvin handlesets we recommend the larger 2 x 12 size to cover any old marks.

This handle set is used by Ashland, Milgard, Jeldwen, Caradco, Cantera, Delta, Pozzi, PGT and others

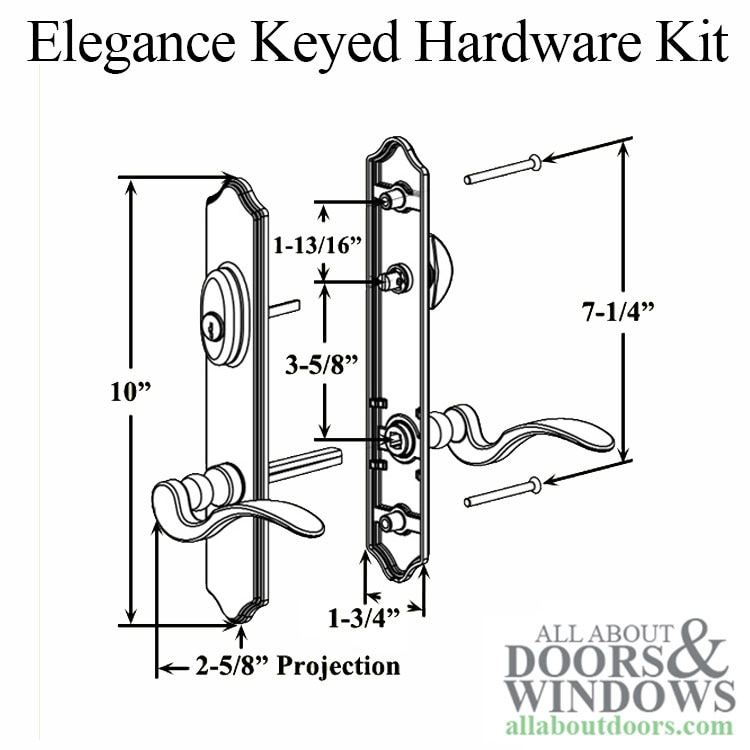

Plate Height: 10 Inch
Plate Width: 1-3/4 Inch
Plate Style: Arch Top

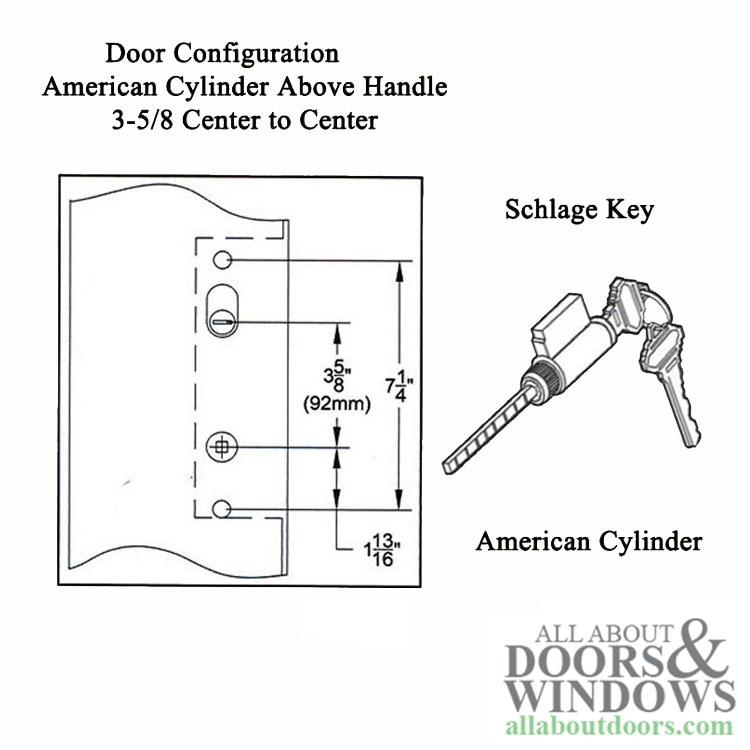

Screw Hole Center: 7-1/4 Inch
Function: Active Keyed with Thumb turn
Door Configuration: Single or double door active hardware with key and interior thumb turn
Door Thickness: Standard 1-3/4 Inch - Hardware for thicker doors available
Handing: Non-Handed fits left and right handed doors
Cylinder: American style with flat tail piece, 5 pin tumbler, 2 keys
Lock Keyway: Schlage SC1
Handle Style: Traditional or Transitional curved levers
Color / Finish: Satin Nickel, Oil Rubbed Bronze, PVD Lifetime Polished Brass
Other finishes available - Special order 2 weeks

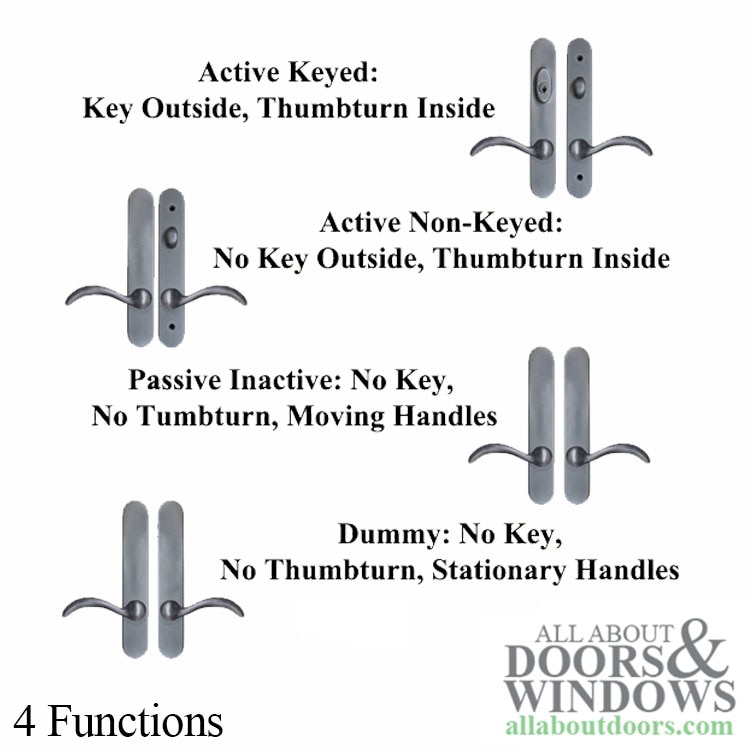

Available Functions: (Prices may vary.)
395004 - Active Keyed, Key Outside, Thumb turn Inside
Active Keyed: Key Outside, Thumb turn Inside. The type of trim can be locked or unlocked from inside or outside.

395005- Active / Inactive, No Key, Thumb turn Inside
Active Non-Keyed: Thumb turn Inside. The type of trim can be locked or unlocked from inside only.

395006- Passive / Dummy, Passage or Fixed Version, No Thumb turn
Passive: No Key, No Thumb turn, Handles move. This type of trim can be used as interior passage or on double doors to operate the Passive / Inactive panel when a thumbturn is NOT needed to secure door.
Dummy: Fixed Version, Ridged levers, No Thumb turn and Handles do not move. This type of trim is used as decoration to match others door hardware.

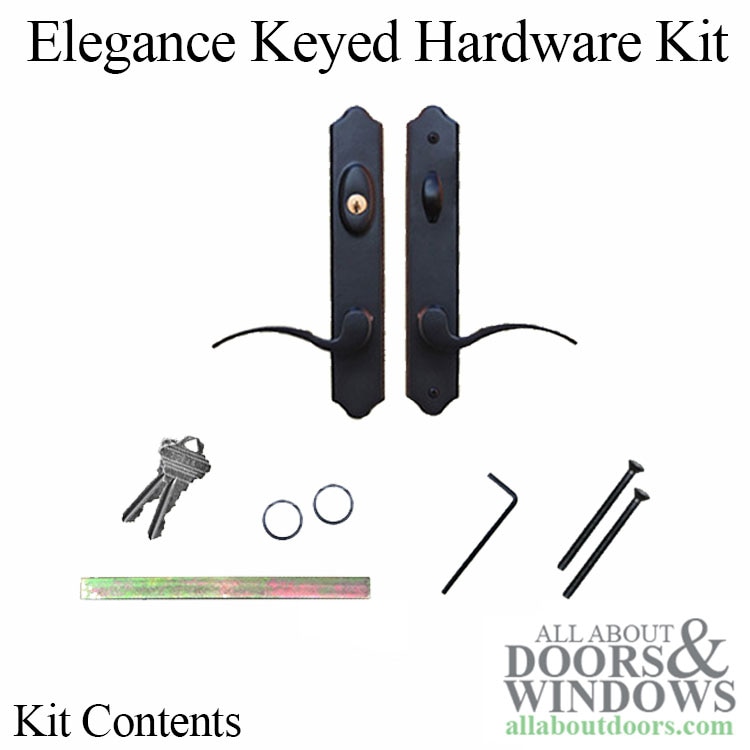

Contents: Inside plate, outside plate, two handles, spindle, hex wrench and installation screws.
Priced and sold as a package.
