Trilennium Pinnacle Passive T-Turn Drive, 3020 Series Handleset

Part Number: 40071
Price:$150.00 to $225.00

 Trilennium Passive Handleset Trim with T-Turn Drive works with the Trilennium 3020 series Inactive Panel Multi-Point Lock

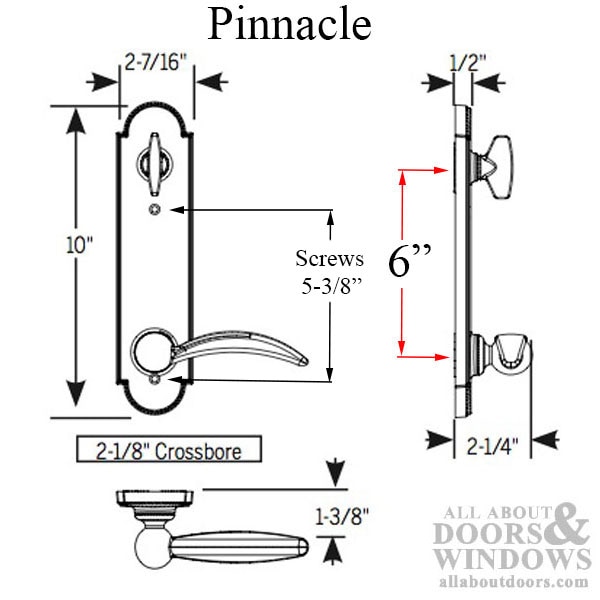

Handle to Cylinder Spacing: 6 inch  (152.4mm)

Door Thickness: 1-3/4 inch  (45mm)

Escutcheon Plate Width: 2-7/16 inch  (61.9mm)

Escutcheon Plate Length: 10 inch  (254mm)

Crossbore: 1-11/16 or 2-1/8 inch


Note 1:

Standard crossbore on most W&F or Endura hardware is 1-11/16 inch. Some doors use a 2-1/8 inch bore. Most Multipoint lock handlesets are only 2 inches wide and will not cover the larger holes.

Pella Entry Door Cross Bore: 2-1/8 inch  Standard

Peachtree lPD Cross Bore: 1-11/16 inch Standard

Handleset Trim for 2-1/8 inch Cross Bore:  Pinnacle, Eclipse, Rectangular & Grip Hardware

Handleset Trim for 1-11/16 Cross Bore: The full W&F line including Horizon and Some Emtek with 2 inch wide plates.


Note 2:


Satin Nickel Finish is available as standard Plated or TriLast® which resists tarnishing and discoloration.



http://www.wfmfg.com/pages/trilennium_hardware.html

W&F Trilennium  Part numbers for 1-3/4" Door

PINL-THT-PB-175 = Bright Brass

PINL-THT-SN-175 = Satin Nickel

PINL-THT-VB-175 = Victorian Bronze

PINL-THT-BK-175 = Black Powder Coat

PINL-THT-SNTL-175 = Satin Nickel, TriLast Finish

PINL-THT-VBTL-175 = Victorian Bronze, TriLast Finish
