Amesbury 800C Dummy Handle Set Multipoint Lock Trim Solid Brass Choose Finish

Amesbury 800C Dummy Handle Set Multipoint Lock Trim Solid Brass Choose Finish

IMPORTANT NOTE: Non-Stock handle sets have a 90 day lead time.

Call the office for availability prior to placing your order.

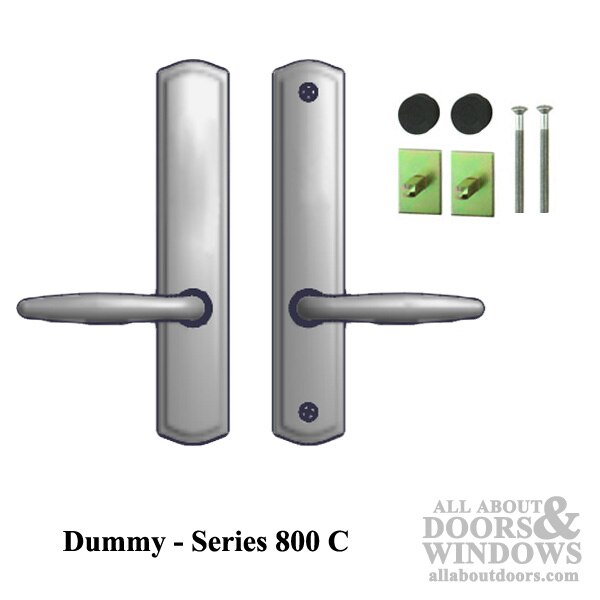

Amesbury non-keyed, fixed-handle hardware for dummy door in double door set with multi-point lock.
The lock trim replaces Integrity by Marvin, Milgard, G-U / Ferco, and other American version multi-point locks

Amesbury 800 C Regency series with straight lever and slight arched top escutcheon plate.

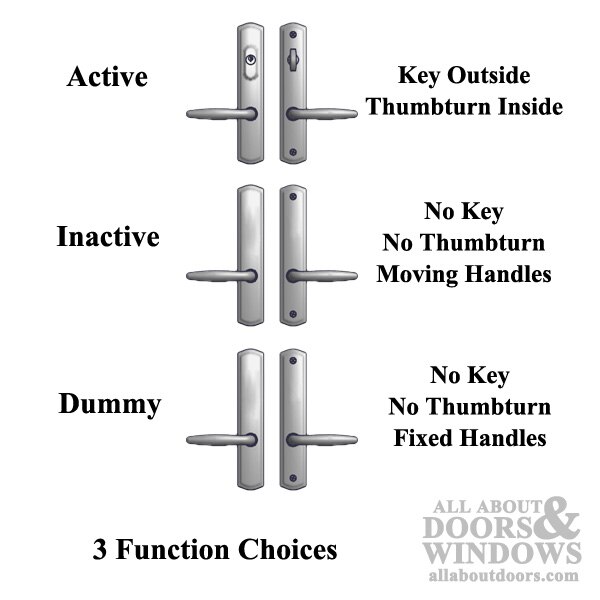

Application: Dummy Handleset with No Key or Thumbturn; Handles Don't Move
(Can be used alongside key above handle or key below handle active handleset applications)

Handed: No (Doesn't matter what side of the door the handle is on)
Levers do not have a set screw. It uses and C-ring (circlip) to hold handle in place.

Base Material: Solid brass with PVD finish for coastal areas
Door Thickness: 1-3/4 Inch

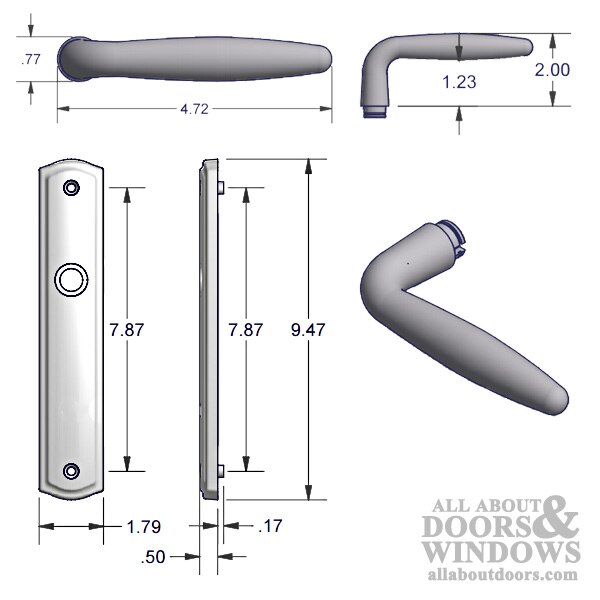

Escutcheon Plate: C Style - Slight Arch Top
Actual Plate Width: 1.79 Inch
Actual Overall Plate Height: 9.47 Inch
Escutcheon Plate Screw Hole Spacing: 7.87 Inch or 7-7/8 Inch (199.9 mm)
Handle to Cylinder: 3.62 Inch or 3-5/8 Inch (92 mm)
Handle Projection: 1.23 Inch
Handle Clearance: 2.00 Inch
Handle Length: 4.72 Inch

Colors / Finishes: Satin Nickel PVD, Polished Brass PVD
*PVD is a high performance finish that resists tarnishing and discoloration; recommended for coastal areas

See additional information tab for other functions and notes regarding the handle set.
