Double Acting Hinge, 5 inch

Part Number: 363705
Price: $105.00

DOUBLE ACTION SPRING HINGE for doors that need to swing both inward and outward

Commonly used in Restaurants, Warehouses and other commercial applications

This hinge allows doors to swing in both directions.

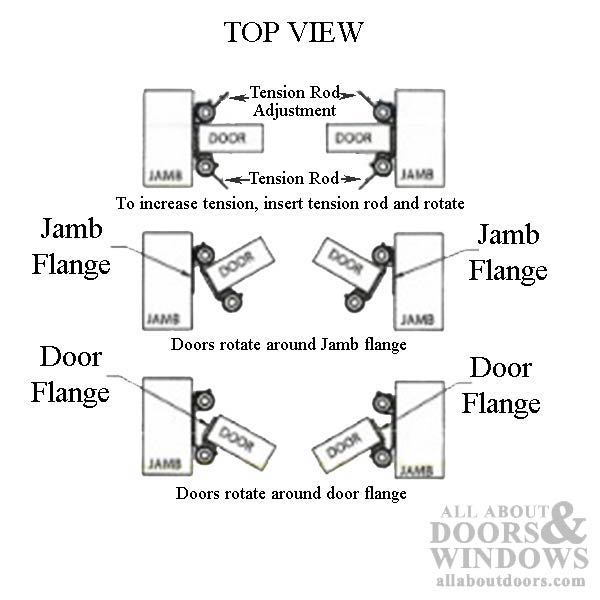

The fully adjustable spring tension also returns the door back to the closed position.

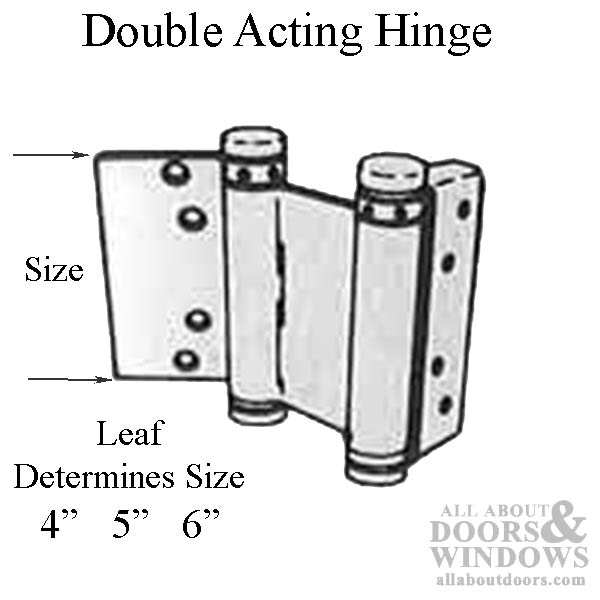

Size: 5 inch

Door Thickness: Doors  1-1/8 to 1-1/2 Thick

Door Widths:  27-30 inches wide

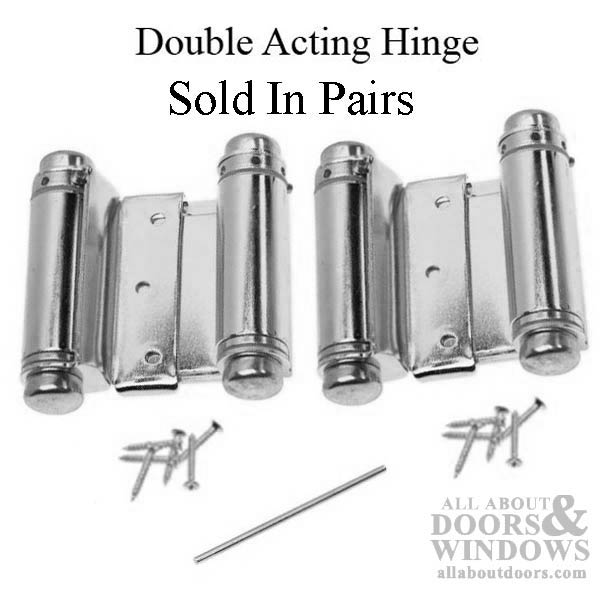

Sold in  Pairs, Priced in Pairs

Color / Finishes: Painted - Silver, Black, Gold Tone


Note: Some heavy doors may require an additional hinge at the top
